/ / / / / / / / (27.124.AA) - REAR AXLE, SHAFT, BRAKES

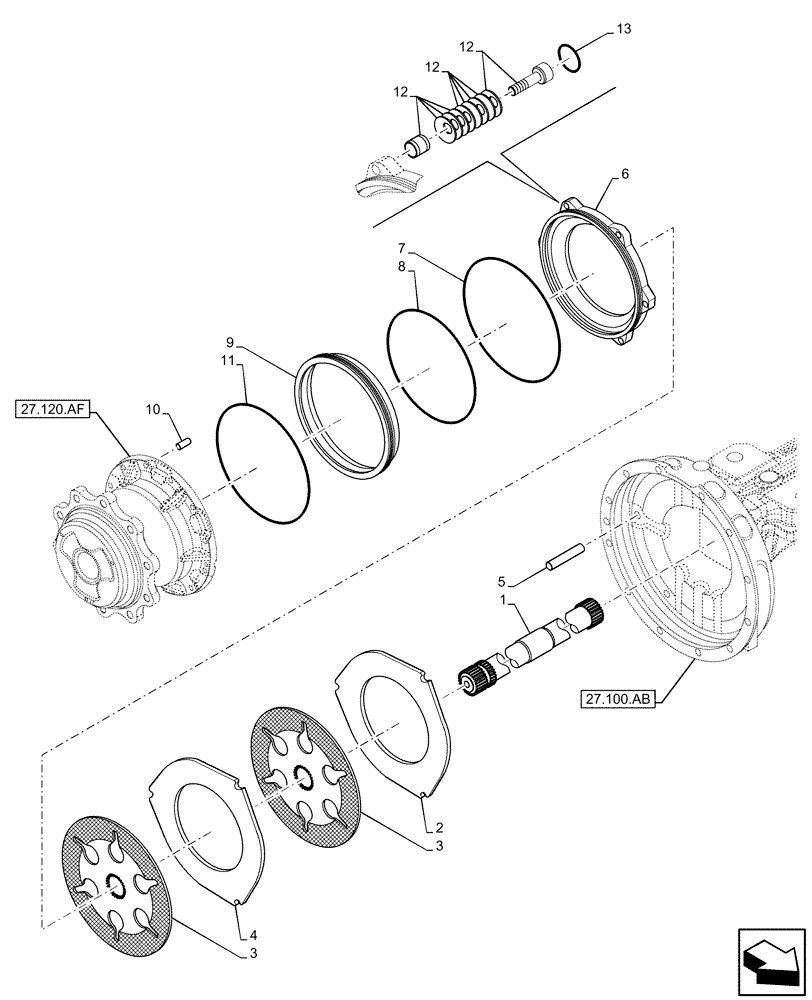

Запчасти Case 580SN WT (27.124.AA) - REAR AXLE, SHAFT, BRAKES (27) - REAR AXLE SYSTEM
27.100.ab
5
12
8
9
7
1
2
6
13
10
4
3
12
11
12
3
27.120.af
1
87708966
SHAFT,750T / 15T
L 750 Z 15
2шт.
2
87708433
BRAKE PLATE,5mm Thk
2шт.
3
87708434
BRAKE PLATE
4шт.
4
87708435
BRAKE PLATE,8mm Thk
2шт.
5
139294A1
GUIDE
6шт.
6
87708436
BRAKE CYLINDER
2шт.
7
87708438
O-RING
2шт.
8
371144A1
O-RING
2шт.
9
87708440
PISTON
2шт.
10
D142890
DOWEL
2шт.
11
371145A1
O-RING
2шт.
12
87708441
BRAKE ADJUSTER,0.6mm
6шт.
13
87708442
CIRCLIP
6шт.
