(27.100.AK) - REAR AXLE, MOUNTING PARTS

Запчасти Case 580SN WT (27.100.AK) - REAR AXLE, MOUNTING PARTS (27) - REAR AXLE SYSTEM

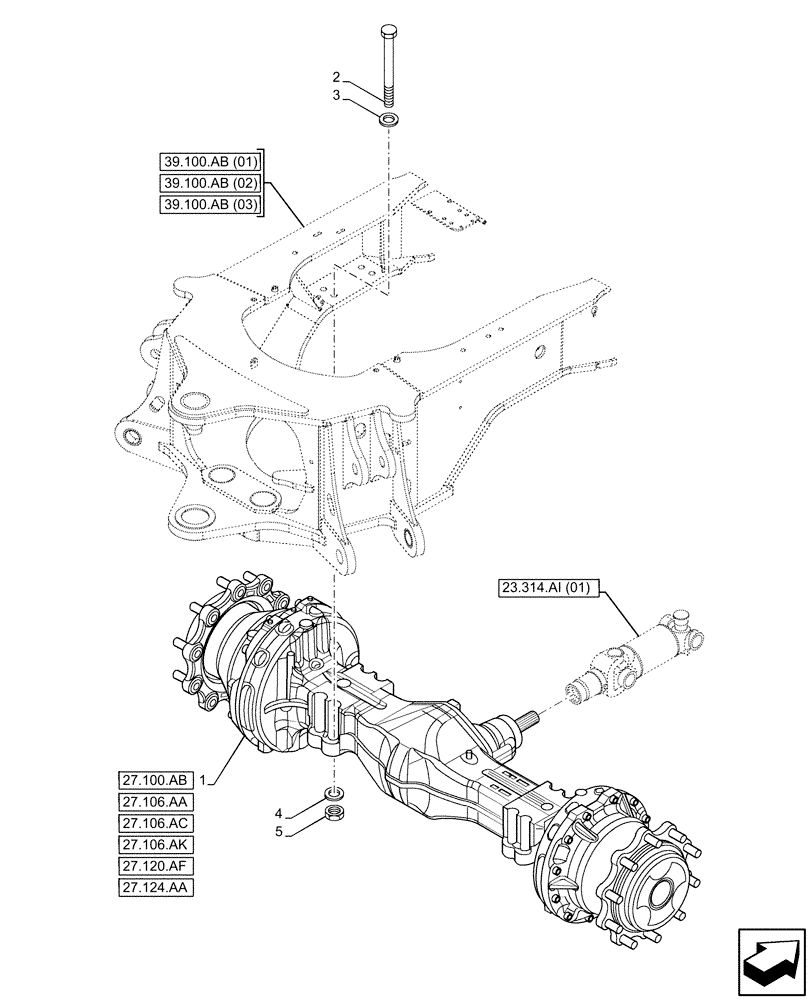

Схема запчастей Case 580SN WT - (27.100.AK) - REAR AXLE, MOUNTING PARTS (27) - REAR AXLE SYSTEM
27.106.ac
2
1
3
5
4
39.100.ab (03)
27.106.ak
27.120.af
27.124.aa
23.314.ai (01)
27.106.aa
39.100.ab (02)
27.100.ab
39.100.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47484457

REAR AXLE

28.50 Drive 16 to 1 CW

1шт.

1

47484457R

REMAN-REAR AXLE

28.50 Drive 16 to 1 CW

1шт.

1

47484457C

CORE-REAR AXLE

Return Number

1шт.

2

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

8шт.

3

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

8шт.

4

87618533

WASHER,21mm ID x 46mm OD x 6.4mm Thk

8шт.

5

829-1420

NUT,M20, Cl 10

8шт.
