Запчасти Case 580SN WT (25.108.AG[02]) - FRONT AXLE, STEERING KNUCKLE, PIN, 4WD (25) - FRONT AXLE SYSTEM

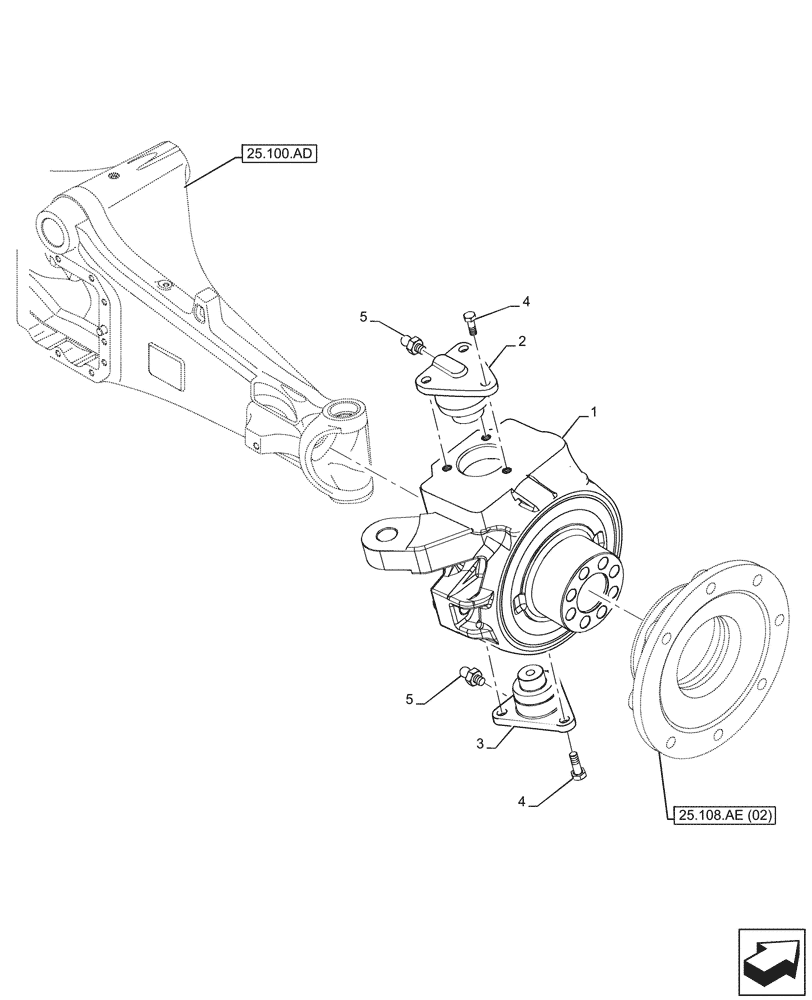

Схема запчастей Case 580SN WT - (25.108.AG[02]) - FRONT AXLE, STEERING KNUCKLE, PIN, 4WD (25) - FRONT AXLE SYSTEM
25.108.ae (02)
5
5
4
4
2
3
1
25.100.ad

Артикул

Название

Примечание

Количество

1

47724322

STEERING KNUCKLE

RH

1шт.

2

84259754

PIN,49.9mm OD x 48mm L

King Steering Knuckle Top

1шт.

3

84259753

PIN,49.9mm OD x 45mm L

King Steering Knuckle Bottom

1шт.

4

84273740

BOLT,Hex, M14 x 35mm, Cl 10.9

6шт.

5

84351730

FITTING,M10 x 1

M10 x 1

2шт.

Выбрано товаров: 5
