(21.154.AG[02]) - VAR - 423059 - TRANSMISSION, POWERSHUTTLE, SYNCHRONIZER, 4WD

Запчасти Case 580SN WT (21.154.AG[02]) - VAR - 423059 - TRANSMISSION, POWERSHUTTLE, SYNCHRONIZER, 4WD (21) - TRANSMISSION

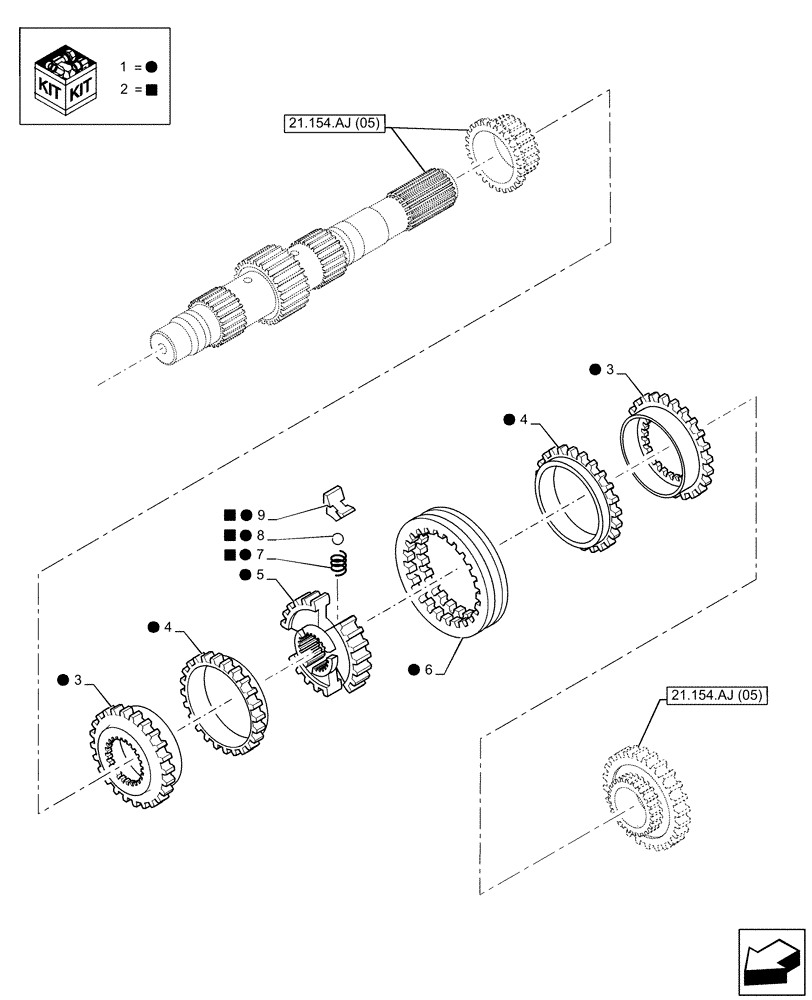

Схема запчастей Case 580SN WT - (21.154.AG[02]) - VAR - 423059 - TRANSMISSION, POWERSHUTTLE, SYNCHRONIZER, 4WD (21) - TRANSMISSION
21.154.aj (05)
1
6
5
3
1
1
7
2
2
1
4
1
3
4
2
8
1
2
9
1
1
1
1
21.154.aj (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87429974

SYNCHRONIZER

Single Cone, D90, Kit, Incl 2 - 9

1шт.

2

326863A1

SERVICE KIT

Synchronizer, Incl 7 - 9

1шт.

2

84336848

SERVICE KIT

Synchronizer, Incl 7 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

Clutch Ring, Incl in 1

2шт.

4

NSS

NOT SOLD SEPARAT

Tapered Friction Ring, Incl in 1

2шт.

5

NSS

NOT SOLD SEPARAT

Hub, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Sleeve, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Spring, Incl in 1 or in 2

3шт.

8

NSS

NOT SOLD SEPARAT

Ball, Incl in 1 or in 2

3шт.

9

NSS

NOT SOLD SEPARAT

Plate, Incl in 1 or in 2

3шт.
