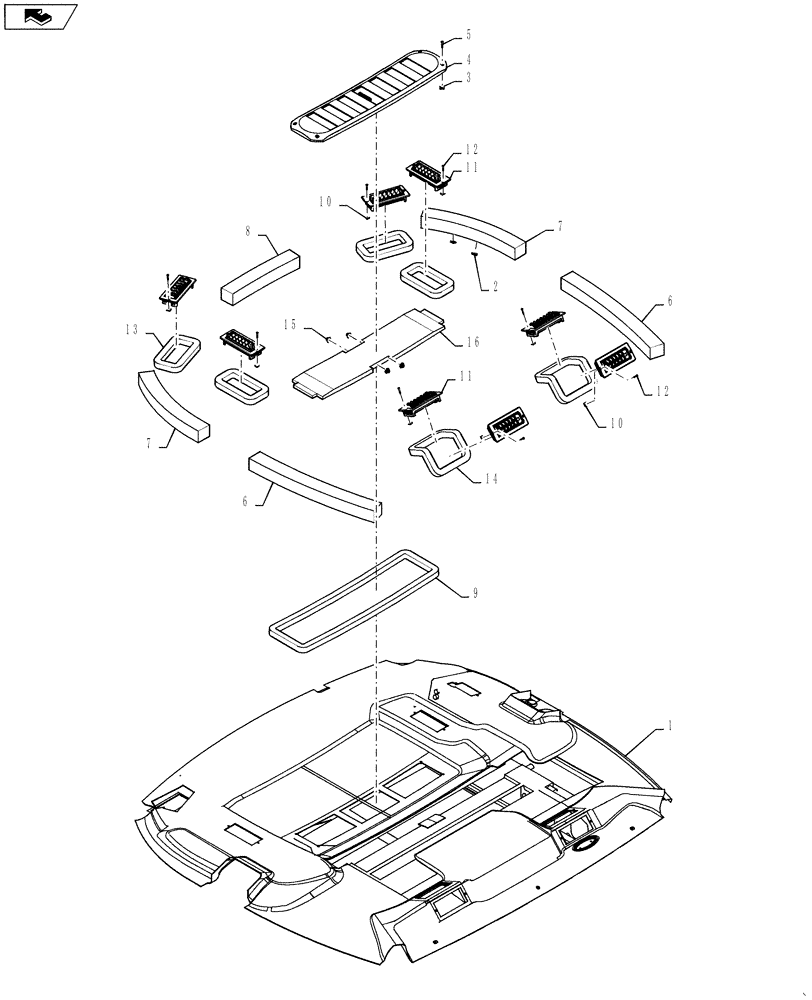

Запчасти Case 580SN WT (90.160.05) - HEADLINER (90) - PLATFORM, CAB, BODYWORK AND DECALS

84224379

HEADLINER

Standard; Includes 84224381 and Ref 2 - 16

1шт.

84224380

HEADLINER

Deluxe; Includes 84224382 and Ref 2 - 16

1шт.

1

84224381

HEADLINER

Standard

1шт.

1

84224382

HEADLINER

Deluxe; With Foam (Not Shown)

1шт.

2

131-861

SPRING NUT,Tinn, U, #10-24

2шт.

3

177269A1

SPRING NUT,M4.2

4шт.

4

369450A1

GRILLE

1шт.

5

414600A1

SCREW,Pan HD, M8 x 1"

4шт.

6

379160A1

FOAM INSULATION,50mm W x 494mm L x 45mm Thk

2шт.

7

379161A1

SEAL,379mm L

Rear

2шт.

8

379209A1

SEAL,303mm L

Rear Center

1шт.

9

381972A1

SEAL,592.5mm L

Recirc. To FA Duct

1шт.

10

125749A1

SPRING NUT

16шт.

11

363883A1

LOUVER

8шт.

12

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

16шт.

12

47915691

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

, Start Year: 26-AUG-15

16шт.

13

84499076

GASKET,174mm L x 97mm L

SEAL; Duct

4шт.

14

368813A2

SEAL,168mm L

Defrost

2шт.

15

409723A1

PLUG

4шт.

16

377594A5

FILTER

Recirculation

1шт.
