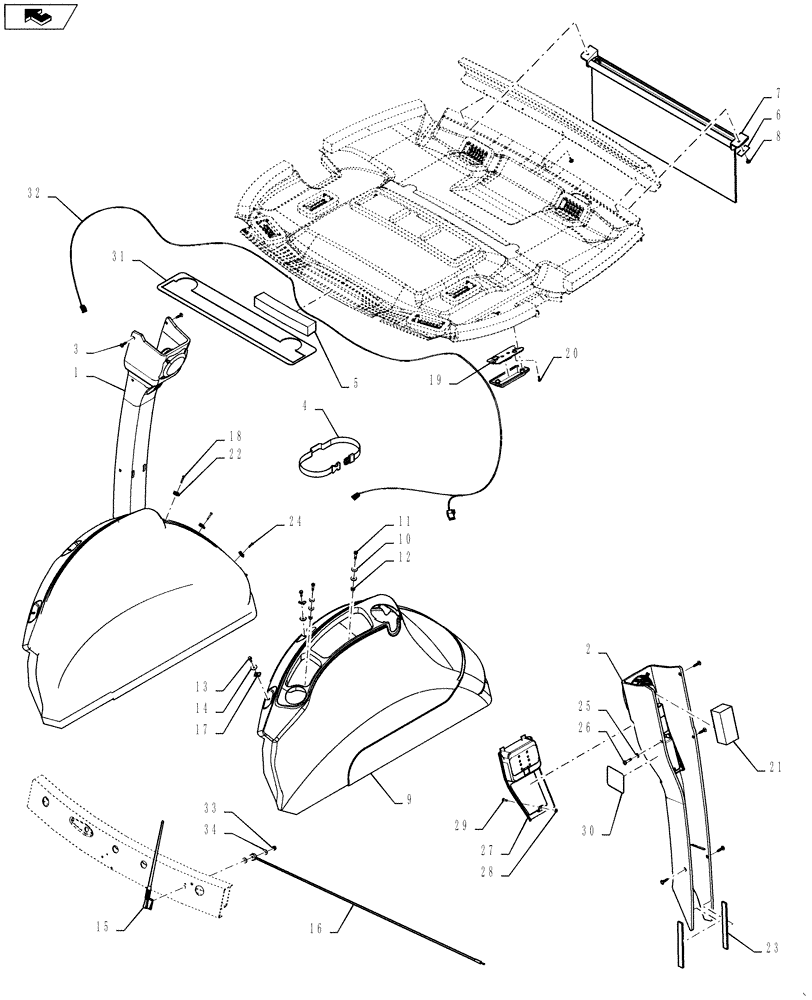

Запчасти Case 580SN WT (90.160.03) - CAB - DELUXE INTERIOR TRIM (580SN WT, 590SN) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

NS

NOT SERVICED

COVER ASSY; LH; See Figure 90.160.04

1шт.

2

84224373

COVER ASSY

RH; See Figure 90.160.04

1шт.

3

401949A1

FASTENER

10шт.

4

378227A1

STRAP,500mm L

Garment

1шт.

5

84224380

HEADLINER

1шт.

6

409618A1

PLATE

Visor Mounting

2шт.

7

364180A1

VISOR, SUN

1шт.

8

396516A1

SCREW,POINTED

3шт.

9

86992248

COVER

Wide Fender

1шт.

10

87310146

WASHER,5.16mm ID x 19.05mm OD x 1.55mm Thk

4шт.

11

87310127

SCREW,Pan HD, #10 - 24 x 1", SST

2шт.

12

231-14109

LOCK NUT,#10-24, GB

2шт.

13

87310098

BOLT,M6 x 20 Full SST BLO

2шт.

14

833-40406

NUT,M6, U

2шт.

15

197745A1

ANTENNA

1шт.

16

381659A1

ELECTRIC CABLE

Antenna

1шт.

17

87310186

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

18

87534992

SELF-TAP SCREW,Pan Head, M10 x 28mm

2шт.

19

380719A2

INTERIOR LIGHT

Dome Light (If Pin A = 12V - Order 47602061, if Pin A = Grd - Order 47774628)

1шт.

19

47602061

COURTESY LIGHT

1шт.

19

47774628

COURTESY LIGHT

1шт.

20

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

2шт.

21

412285A1

STRIP

1шт.

22

397774A3

STRIP

LH Trim

1шт.

23

414939A1

SEAL,200mm L

2шт.

24

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

1шт.

25

87713130

WASHER,6.85mm ID x 12.75mm OD x 1.8mm Thk

1шт.

26

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

1шт.

27

84224376

BEZEL

Radio

1шт.

28

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

1шт.

29

87310147

SCREW,Pan Cross Recess Phillips, M4 x 0.7 x 16mm, Stainless

1шт.

30

84224378

DECAL

No Radio

1шт.

31

382770A2

FOAM INSULATION,3mm Thk

Headliner Filter Tray

1шт.

32

382664A2

WIRE HARNESS

Cab Speaker

1шт.

33

825-1405

NUT,M5, Cl 8

1шт.

34

84292403

WASHER

1шт.
