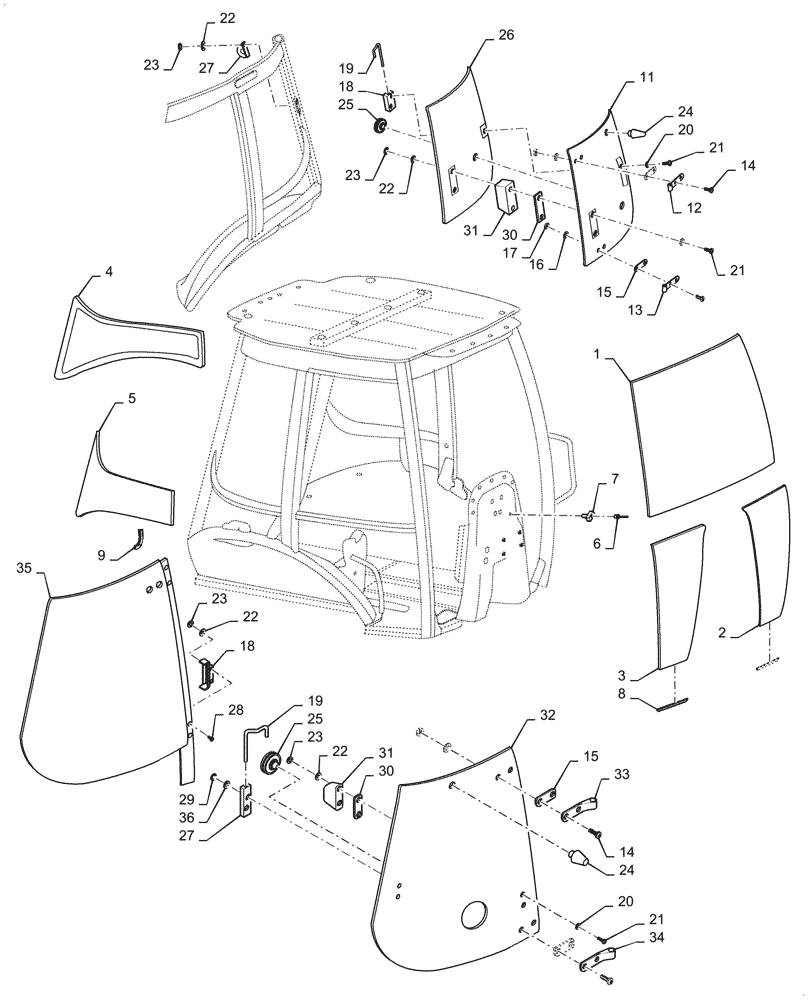

Запчасти Case 580SN WT (90.156.05) - VAR 747853, 747854, 747855, CAB - GLASS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84246306

GLASS

Front

1шт.

2

84246307

CAB GLASS ASSY

Left Hand Front

1шт.

3

84246308

CAB GLASS ASSY

Right Hand Front

1шт.

4

84224342

CAB GLASS ASSY

Left Hand Rear Lower

1шт.

5

84224343

CAB GLASS ASSY

Right Hand Rear Lower

1шт.

6

279482A1

CLAMP

2шт.

7

151-516

RIVET,Pop, 1/8" x .775"

2шт.

8

395793A1

PROTECTION STRIP

2шт.

9

87753087

PROTECTOR

2шт.

10

391827A1

SPACER,11.1mm D

(Not Shown)

33шт.

11

84261871

GLASS

Left Hand Rear Quarter

1шт.

12

84282065

HINGE

Left Hand Upper

1шт.

13

84282071

HINGE

Left Hand Lower

1шт.

14

89509420

SCREW,FLAT, M8 x 1.25 x 12mm, Cl 8.8

2шт.

15

84224336

SHIM,35mm OD x 5mm Thk

4шт.

16

83961985

SPACER,12.6mm ID x 18mm OD x 6.5mm L

8шт.

17

84249588

SPECIAL NUT,M8 x 1.25

8шт.

18

87344859

LATCH

2шт.

19

87534372

ROD,7.9mm OD

2шт.

20

47499507

SEALING WASHER,8.9mm ID x 15.9mm OD x 2.38mm Thk

8шт.

21

142-103

SCREW,Phil Oval Hd, Csk, #10 - 24 x 3/4"

8шт.

22

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

12шт.

23

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

8шт.

24

84224398

BUMPER,6D Durometer EPDM Black

Window

2шт.

25

84224399

LATCH

2шт.

26

84224360

RUBBER SEAL

Left Hand Rear Quarter

1шт.

27

87344860

HANDLE

2шт.

28

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

4шт.

29

87534717

PUSH-ON NUT,0.625" L

2шт.

30

R54047

PAD,30mm OD x 0.76mm Thk

2шт.

31

97399C1

HANDLE

2шт.

32

84261872

GLASS

Right Hand Rear Quarter

1шт.

33

84282077

HINGE

Right Hand Upper

1шт.

34

84282081

HINGE

Right Hand Lower

1шт.

35

84224361

RUBBER SEAL

Right Hand Rear Quarter

1шт.

36

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

2шт.
