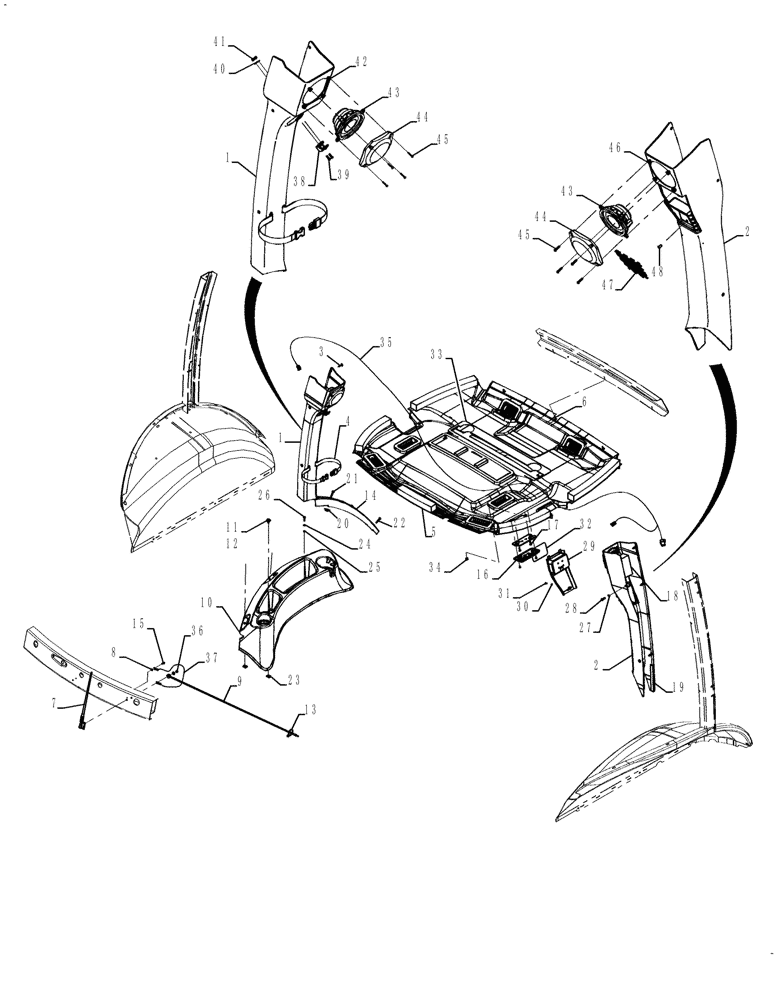

Запчасти Case 580SN WT (90.150.02[02]) - CAB - TRIM AND COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87657148

COVER

1шт.

2

84224374

COVER ASSY

1шт.

3

401949A1

FASTENER

9шт.

4

378227A1

STRAP,500mm L

1шт.

5

84224379

HEADLINER

1шт.

6

396516A1

SCREW,POINTED

3шт.

7

197745A1

ANTENNA

1шт.

8

893-11005

LOCK WASHER,Ext Tooth, M5

1шт.

9

381659A1

ELECTRIC CABLE

1шт.

10

86992247

TRAY

1шт.

11

87310186

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

12

87310098

BOLT,M6 x 20 Full SST BLO

2шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

14

397026A3

TRIM

1шт.

15

282-17512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

1шт.

16

380719A2

INTERIOR LIGHT

(If Pin A = 12V - Order 47602061, if Pin A = Grd - Order 47774628)

1шт.

16

47602061

COURTESY LIGHT

1шт.

16

47774628

COURTESY LIGHT

1шт.

16

48059312

GASKET

Courtesy Light

1шт.

17

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

2шт.

18

412285A1

STRIP

1шт.

19

414939A1

SEAL,200mm L

2шт.

20

131-869

SPRING NUT,Ret, J, #10-24

3шт.

21

87534992

SELF-TAP SCREW,Pan Head, M10 x 28mm

2шт.

22

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

1шт.

23

833-40406

NUT,M6, U

2шт.

24

87310146

WASHER,5.16mm ID x 19.05mm OD x 1.55mm Thk

4шт.

25

231-14109

LOCK NUT,#10-24, GB

2шт.

26

87310127

SCREW,Pan HD, #10 - 24 x 1", SST

2шт.

27

87713130

WASHER,6.85mm ID x 12.75mm OD x 1.8mm Thk

1шт.

28

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

1шт.

29

84224376

BEZEL

1шт.

30

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

1шт.

31

840-1412

SCREW,Hex Skt, M4 x 12mm, Cl 4.8

1шт.

32

84224378

DECAL

1шт.

33

382770A2

FOAM INSULATION,3mm Thk

Filter Tray, Headliner

1шт.

34

353-403

PLUG,Dome, .437" hole, Nylon

1шт.

35

382664A2

WIRE HARNESS

1шт.

36

825-2405

FLANGE NUT,M5 x .8, Flg, Cl 8

1шт.

37

291010A1

ELECTRICAL WIRE

1шт.

38

114549A1

COAT HOOK

1шт.

39

87310147

SCREW,Pan Cross Recess Phillips, M4 x 0.7 x 16mm, Stainless

2шт.

40

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

41

832-10404

NUT,M4 x 0.7, Cl 8.8

2шт.

42

177269A1

SPRING NUT,M4.2

4шт.

43

182721A2

SPEAKER

2шт.

44

187281A1

COVER

2шт.

45

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

8шт.

46

177269A1

SPRING NUT,M4.2

4шт.

47

84224377

NET

1шт.

48

87603595

NUT,BH, M4 x 0.7 x 11.9mm L

1шт.
