(90.116.01) - FRONT FENDERS - FRONT WHEELGUARD

Запчасти Case 580SN WT (90.116.01) - FRONT FENDERS - FRONT WHEELGUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

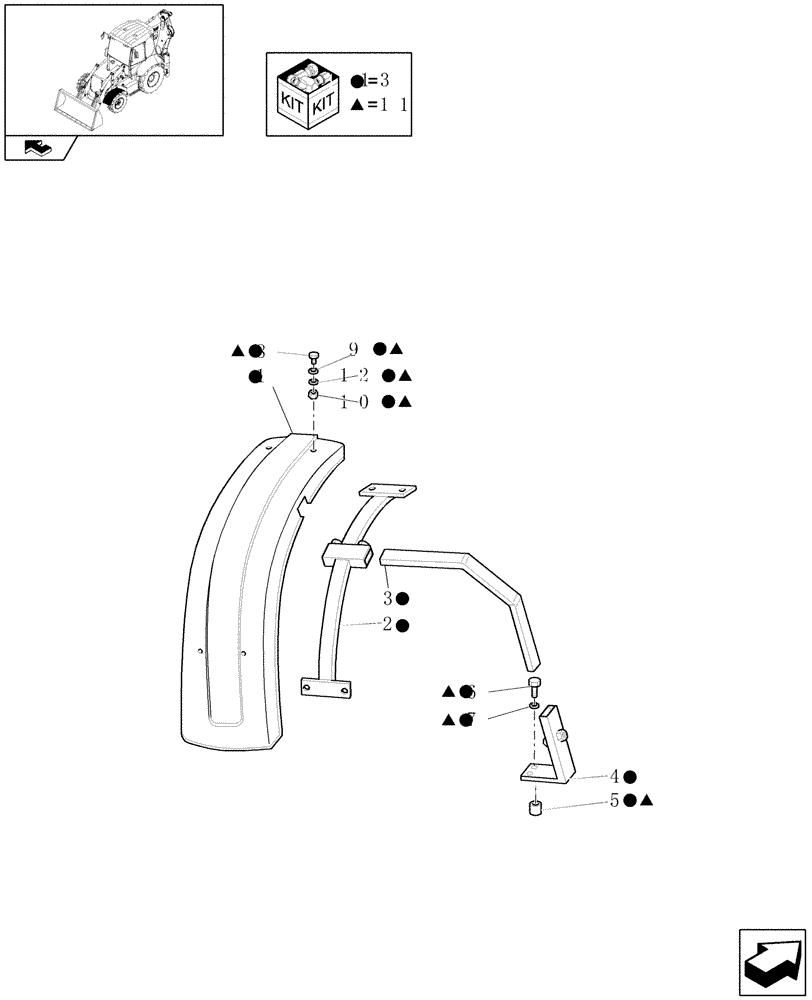

Схема запчастей Case 580SN WT - (90.116.01) - FRONT FENDERS - FRONT WHEELGUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
13
3
13
4
2
1
11
13
7
13
home
9
11
8
13
13
11
13
13
12
13
10
13
13
13
11
11
11
6
11
11
5
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

9968885

FRONT FENDER

LH

1шт.

1

9968886

FRONT FENDER

RH

1шт.

2

9968884

SUPPORT

2шт.

3

85826132

SUPPORT

2шт.

4

85826134

SUPPORT

RH

1шт.

4

85826133

SUPPORT

LH

1шт.

5

87348002

SPACER,17mm ID x 25mm OD x 30mm L

6шт.

6

11119121

BOLT,Hex, M16 x 60, 8.8

6шт.

7

14496901

WASHER,17mm ID x 30mm OD x 3mm Thk

6шт.

8

87302831

SCREW,M6 x 20mm

M6 x 20

8шт.

9

11194779

BELLEVILLE WASHER,Belleville, M6.4

6.5x18x1.5

8шт.

10

12574211

NUT,M6 x 1, Cl 8

8шт.

11

87302715

KIT

M10x20

1шт.

12

11193279

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD

8шт.

13

85826131

KIT

1шт.
