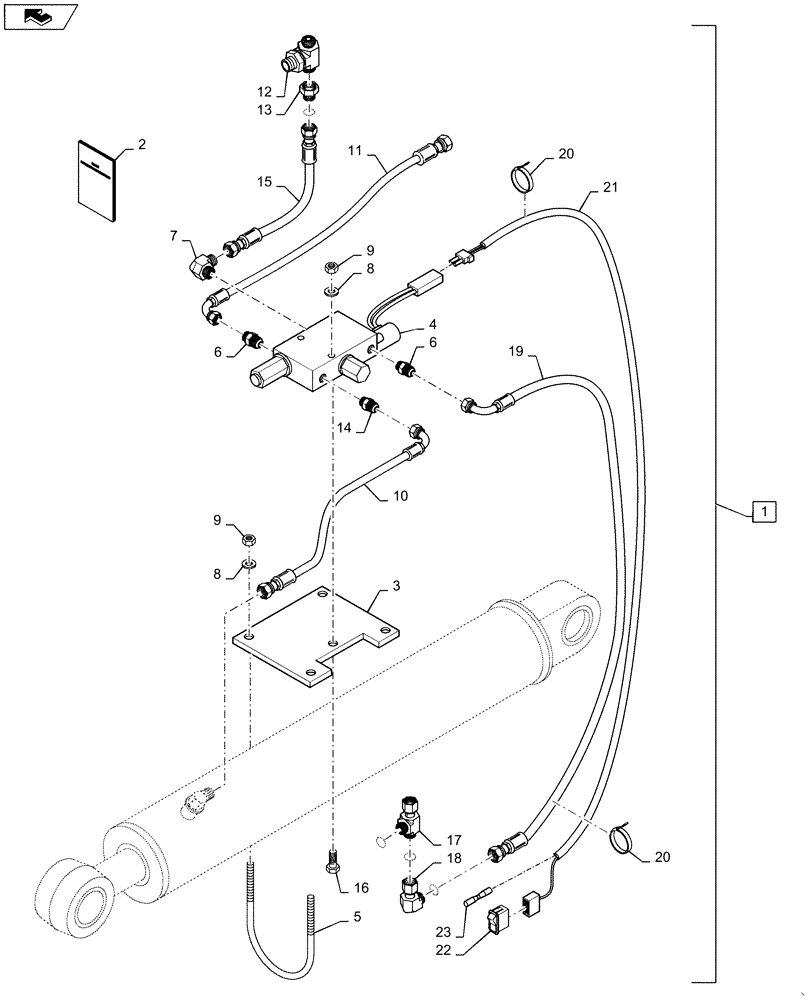

Запчасти Case 580SN WT (88.035.01) - DIA KIT, BOOM LOCK, 580N/SN/SN WT (88) - ACCESSORIES

1

84376464

KIT

Boom Lock, 580N/SN/SN WT, Incl 2 - 23

1шт.

2

84376511

INSTRUCTION

Sheet, Boom Lock

1шт.

3

84314682

PLATE

Valve Mounting

1шт.

4

84312313

VALVE

Boom Lock

1шт.

5

D150053

BOLT

U

2шт.

6

87359470

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

Straight - Boss Jump

2шт.

7

87016877

ELBOW,90 Degree, 13/16"-16 x 9/16"-18, Adj, ORFS

Boss Jump

1шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

6шт.

9

231-1446

NUT,3/8" - 16, Gr 5

6шт.

10

84377302

HYD TUBE

Assembly, Boom Locking Valve

1шт.

11

84376467

HYD TUBE

Assembly, Boom Locking Valve

1шт.

12

84312236

BRANCH TEE

Boss

1шт.

13

84989617

HYD CONNECTOR,1"-14 ORFS x 1-3/16"-12 Fem ORFS

Reducer

1шт.

14

87672176

HYD CONNECTOR

Boss

1шт.

15

84376468

HOSE ASSY.,8mm ID x 423mm L

Boom Lock - Pilot

1шт.

16

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

17

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

Union Tee, O-Ring Face Seal Swivel Run

1шт.

18

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

1шт.

19

84376470

HOSE ASSY.,10mm ID x 3866mm L

Hydraulics, Boom Lock - Pilot

1шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

11шт.

21

84342283

HARNESS

Jumper, Boom Lock

1шт.

22

400016A1

SWITCH

Rocker Boom Lock

1шт.

23

84292428

WIRE CONNECTOR

American Gage Red Butt Seal

1шт.
