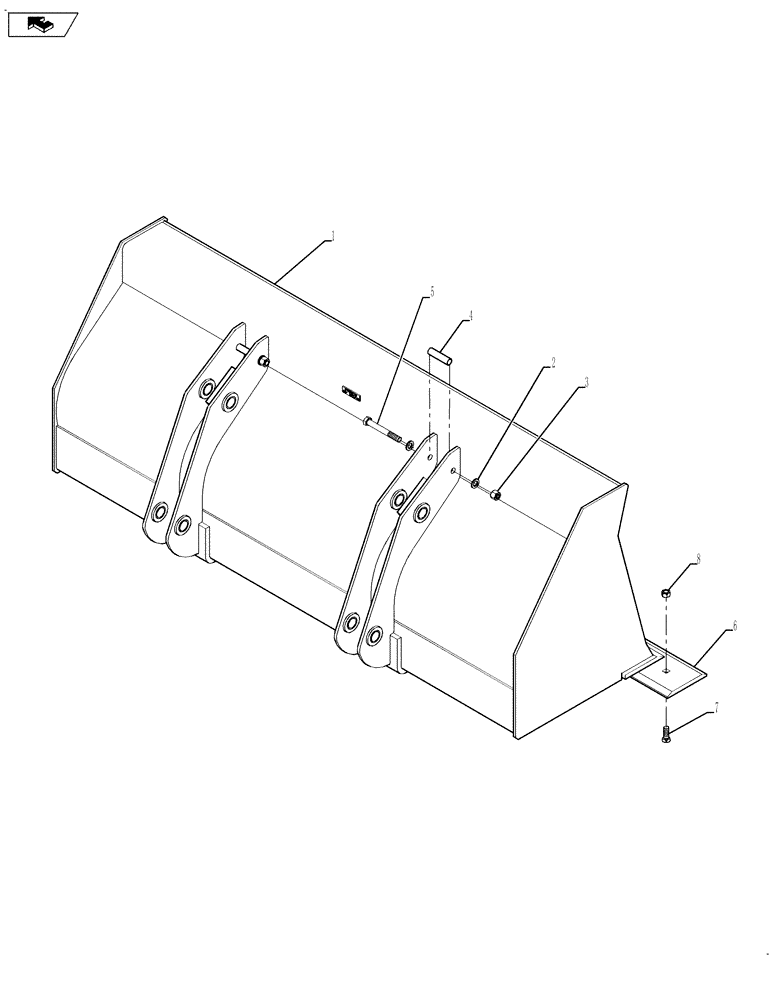

Запчасти Case 580SN WT (82.100.01[02]) - BUCKET, LOADER LONG LIP (96 IN) (82) - FRONT LOADER & BUCKET

1

84189277

BUCKET,2438mm L

1шт.

2

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

3

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

4

84235628

SPACER,21mm ID x 25mm OD x 100mm L

2шт.

5

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

2шт.

6

87375241

EDGE,96 Inch / 2438mm, 10 Holes

1шт.

7

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

10шт.

8

429-1012

NUT,3/4"-10, G8

10шт.
