Запчасти Case 580SN WT (55.518.07) - CANOPY, ROPS - WIPER, FRONT AND WINDSHIELD WASHER (55) - ELECTRICAL SYSTEMS

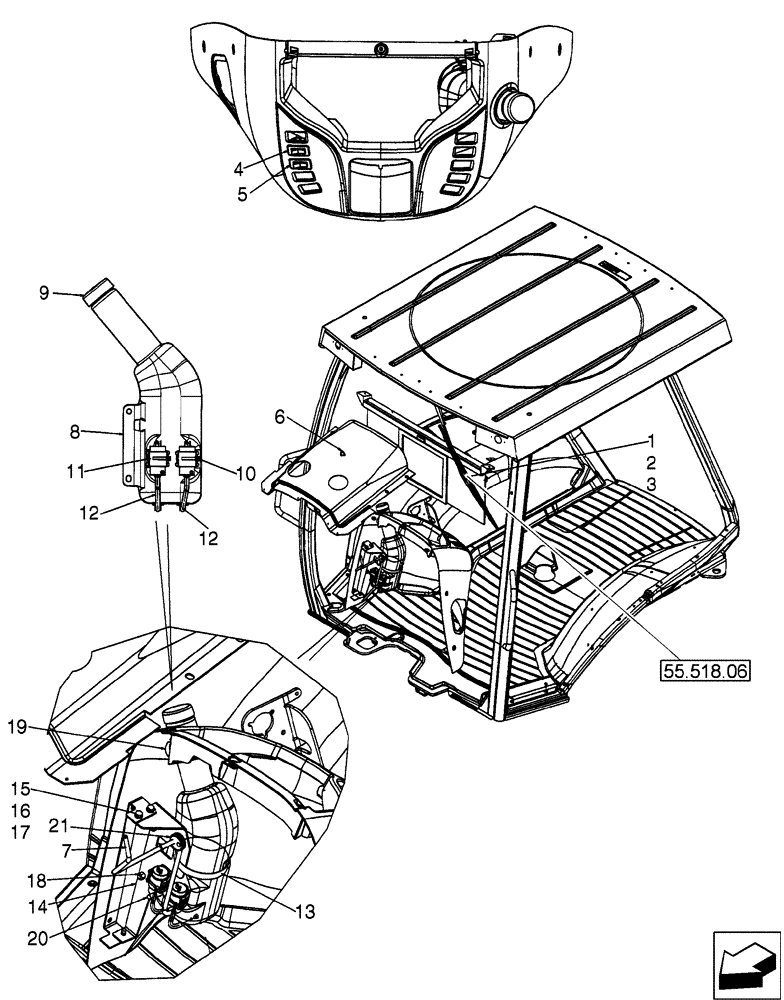

Схема запчастей Case 580SN WT - (55.518.07) - CANOPY, ROPS - WIPER, FRONT AND WINDSHIELD WASHER (55) - ELECTRICAL SYSTEMS
13
9
18
3
55.518.06
1
15
5
6
20
16
14
8
12
12
2
7
21
4
10
19
11
17

Артикул

Название

Примечание

Количество

1

87669381

WIPER MOTOR,12V

12V

1шт.

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

Wiper Motor Mounting

2шт.

892-11006

LOCK WASHER,M6

2шт.

2

87669391

WIPER ARM,Single, 550mm L

1шт.

3

87669761

WIPER BLADE,600mm L

600 mm

1шт.

4

386785A1

WINDSHIELD WIPER SWI

Front

1шт.

5

386787A1

WINDSHIELD WASHER SW

1шт.

6

E43769

SPRAY

NOZZLE; Front; Includes Rubber Gasket; Plastic

1шт.

7

87699640

HOSE WASHER,3.56 mm ID, 4.37 mm ID x 700.00 mm, SAE J1037

Cut From 87282056

1шт.

8

87675208

RESERVOIR, WINDSHIEL

1шт.

9

87711985

FILLER CAP

Washer Bottle

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

11

86507198

PUMP,Windshield Washer

Window

2шт.

12

87700794

HOSE WASHER,4.76 mm ID x 135.00 mm

Bottle

2шт.

13

214-3180

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm

1шт.

14

87491347

BRACKET

Replaces 87676276

2шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

17

833-40408

NUT,M8, U

3шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

19

87748047

SEAL,78mm ID x 106.6mm OD x 7mm Thk

1шт.

20

87441758

CAP

Reservoir

1шт.

21

87637384

GROMMET,35mm OD, 9mm ID, 12mm L

Washer Hose

1шт.

404617A1

WIRE HARNESS

Front Lamps and Wiper

1шт.

87726574

WIRE HARNESS

Front Console Options; Includes (1) L71879 Diode

1шт.

87726573

WIRE HARNESS

Chassis Options; Includes (4) L71879 Diodes; Not Illustrated

1шт.

Выбрано товаров: 26
