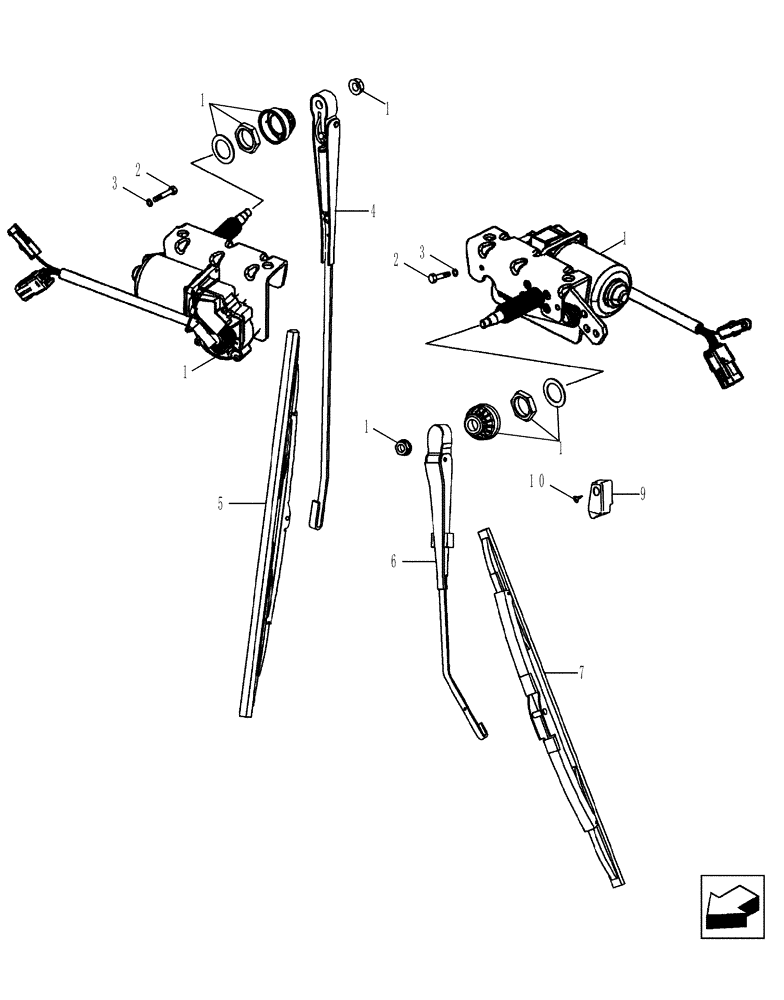

Запчасти Case 580SN WT (55.518.06) - CAB - WIPERS (55) - ELECTRICAL SYSTEMS

1

87669381

WIPER MOTOR,12V

12V

2шт.

404617A1

WIRE HARNESS

Front Lamps and Wiper

1шт.

84168581

WIRE HARNESS

Cab, B-Post, Rear Wiper, Radio, Blower, Dome Lamp; Replaces 396018A3

1шт.

84222278

SWITCH

Rear

1шт.

84222277

SWITCH

Front

1шт.

A187714

PUSH BUTTON SWITCH

Rear Wiper Cutout

1шт.

495-11047

WASHER,7/16", SAE

2шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

1шт.

2

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

4шт.

3

892-11006

LOCK WASHER,M6

4шт.

4

87669391

WIPER ARM,Single, 550mm L

Front

1шт.

5

87669761

WIPER BLADE,600mm L

Front

1шт.

6

87669712

WIPER ARM,Single, 429mm L

Rear

1шт.

7

87669401

WIPER BLADE,400mm L

Rear

1шт.

9

395026A1

RAMP

Block

1шт.

10

395389A1

SCREW,Phillips Drive, Pan HD, M6 x 1 x 16mm

M6

1шт.
