(55.512.17[02]) - VAR 423061, 423062 - HARNESS INSTALL - SIDE CONSOLE, S AND H TYPE POWERSHIFT TRANSMISSION (580SN, 580SN WT, 590SN)

Запчасти Case 580SN WT (55.512.17[02]) - VAR 423061, 423062 - HARNESS INSTALL - SIDE CONSOLE, S AND H TYPE POWERSHIFT TRANSMISSION (580SN, 580SN WT, 590SN) (55) - ELECTRICAL SYSTEMS

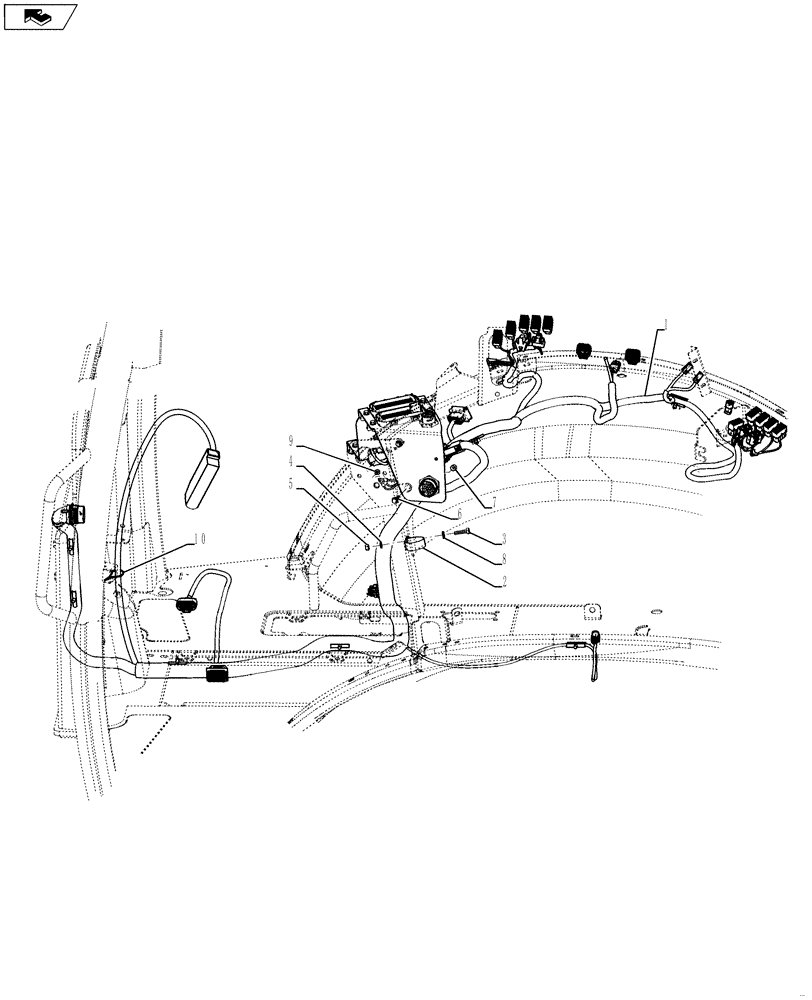

Схема запчастей Case 580SN WT - (55.512.17[02]) - VAR 423061, 423062 - HARNESS INSTALL - SIDE CONSOLE, S AND H TYPE POWERSHIFT TRANSMISSION (580SN, 580SN WT, 590SN) (55) - ELECTRICAL SYSTEMS
7
home
8
10
1
2
3
4
5
6
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84292424

WIRE HARNESS

Power Shuttle and Powershift; S and H Type Transmission

1шт.

2

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

1шт.

3

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

4

892-11008

LOCK WASHER,8mm ID

1шт.

5

824-1408

NUT,M8 x 1.25, Cl 10

1шт.

6

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

7

832-10406

NUT,M6 x 1, Cl 8

2шт.

8

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

9

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

1шт.
