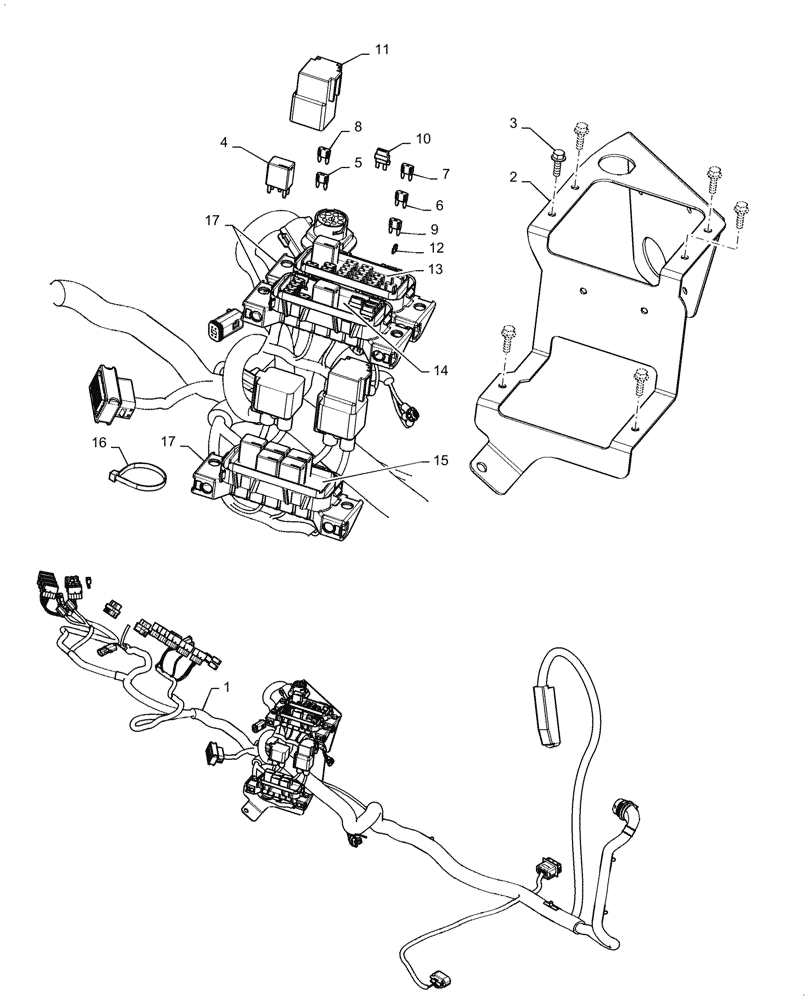

Запчасти Case 580SN WT (55.512.17[01]) - VAR 423061, 423062 - HARNESS - SIDE CONSOLE, S AND H TYPE POWERSHIFT TRANSMISSION (580SN, 580SN WT, 590SN) (55) - ELECTRICAL SYSTEMS

1

84292424

WIRE HARNESS

Power Shuttle and Powershift; S and H Type Transmission

1шт.

2

84292270

BRACKET

1шт.

3

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

6шт.

4

87655334

RELAY,12V, 35A, Micro

(Used for SAHR Park Break, SAHR Park Brake Trans Cutout, Starter, Power #1, #2, #3, #4, Comfort Steer, Fwd, Neutral, Reverse, Trans De-clutch, Lighting, A/C)

8шт.

5

121411A1

FUSE,7.5A, Mini, Brown

(Used Trans Diff Lock, 4WD Auto Ride Ctl, Turn Signal, Hazzard, ECU B+)

2шт.

6

121410A1

FUSE,5A, Mini, Tan

(Used for Tail Light, Dome Light, High Beam, Beacon, Radio B+, Horn, Trax B+, 2WD Ride Control, SAHR Brake, Comfort Steer, Powerlift, ECU B+, Instrument Cluster, Telematics)

13шт.

7

121413A1

FUSE,15A, Mini, Blue

(Used for Side/Head/Front Work Lights)

3шт.

8

121412A1

FUSE,10A, Mini, Red

(Used for ECU B+, Front/Rear Wiper/Washer, Pilot Ctl, A/C, Key Switch, Quick Coupler, EH Clam, Radio)

6шт.

9

121416A1

FUSE,30A, Mini, Green

(Used for Cigarette Lighter, Blower Motor, Customer B+, Customer Key On)

3шт.

10

416569A1

DIODE ELEMENT,7300W

(Used for Quick Coupler, Fwd/Reverse Signal, Torque Control)

6шт.

11

84271717

RELAY,12V, 50A

(Used for Power #1 & #2, ECU B+)

2шт.

11

84471904

HOLDER

4 Way Receptacle, Relay Holder

2шт.

11

84301901

TERMINAL

20 GA

4шт.

11

84301909

8 GA

TERMINAL

4шт.

12

84292399

KEY

(Used for Fwd/Reverse Signal)

6шт.

13

84290788

DECAL

1шт.

14

84290785

DECAL

1шт.

15

84290787

DECAL

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

17

48082345

Assy

FUSE BOX

3шт.

17

84404932

COVER

3шт.

17

48079529

SEAL

3шт.

17

84342278

CONNECTING BLOCK

3шт.
