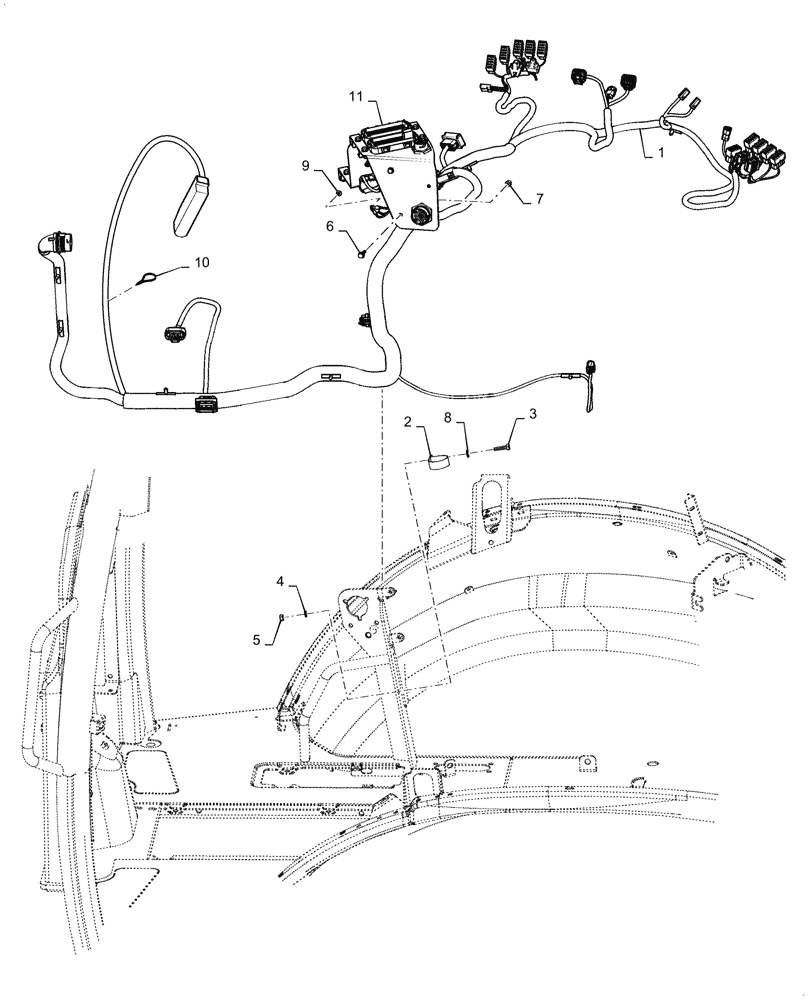

Запчасти Case 580SN WT (55.512.16[02]) - VAR 423059 - HARNESS INSTALL - SIDE CONSOLE, STANDARD POWERSHUTTLE TRANSMISSION (580SN, 580SN WT, 590SN) (55) - ELECTRICAL SYSTEMS

1

84292421

WIRE HARNESS

Standard Transmission

1шт.

2

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

1шт.

3

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

4

892-11008

LOCK WASHER,8mm ID

1шт.

5

824-1408

NUT,M8 x 1.25, Cl 10

1шт.

6

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

7

832-10406

NUT,M6 x 1, Cl 8

2шт.

8

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

9

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

11

48082345

Assy

FUSE BOX

3шт.

11

84404932

COVER

3шт.

11

48079529

SEAL

3шт.

11

84342278

CONNECTING BLOCK

3шт.
