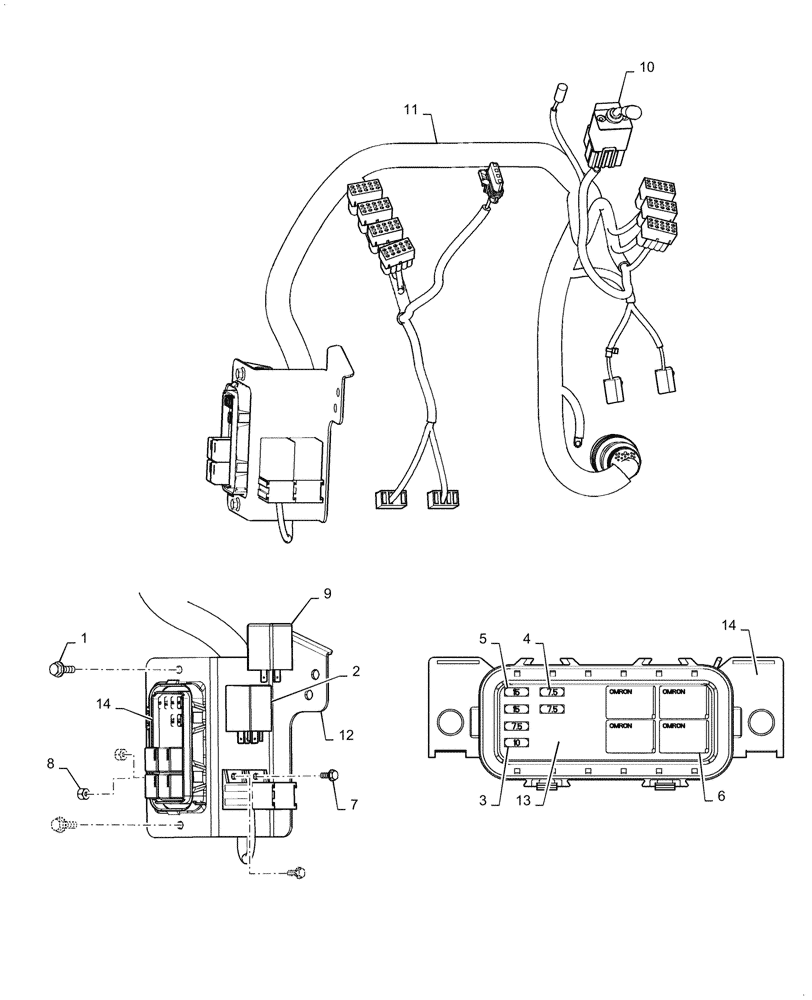

Запчасти Case 580SN WT (55.512.15[02]) - VAR 423059 - HARNESS - FRONT CONSOLE, POWERSHUTTLE TRANSMISSION (580SN, 580SN WT, 590SN) (55) - ELECTRICAL SYSTEMS

.

84342267

WIRE HARNESS

Std - Powershuttle 2WD & 4WD Transmission, Incl 1 - 13

1шт.

1

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

2шт.

2

87578455

RELAY,12V, Turn Signal and Hazard

1шт.

3

121412A1

FUSE,10A, Mini, Red

1шт.

4

121411A1

FUSE,7.5A, Mini, Brown

3шт.

5

121413A1

FUSE,15A, Mini, Blue

2шт.

6

87655334

RELAY,12V, 35A, Micro

4шт.

7

87301687

SCREW,HWH, #10 - 32 x 1/2"

2шт.

8

231-24409

NUT,#10-32

2шт.

9

347706A3

RELAY,12V, 5A

1шт.

10

389487A1

LIGHT SWITCH

1шт.

11

84342266

WIRE HARNESS

(Used with 84342267)

1шт.

11

84342262

WIRE HARNESS

1шт.

12

84238043

BRACKET

1шт.

13

84290789

DECAL

1шт.

14

48082345

Assy

FUSE BOX

1шт.

14

84404932

COVER

1шт.

14

48079529

SEAL

1шт.

14

84342278

CONNECTING BLOCK

1шт.
