Запчасти Case 580SN WT (55.512.14[03]) - HARNESS - FRONT CONSOLE (55) - ELECTRICAL SYSTEMS

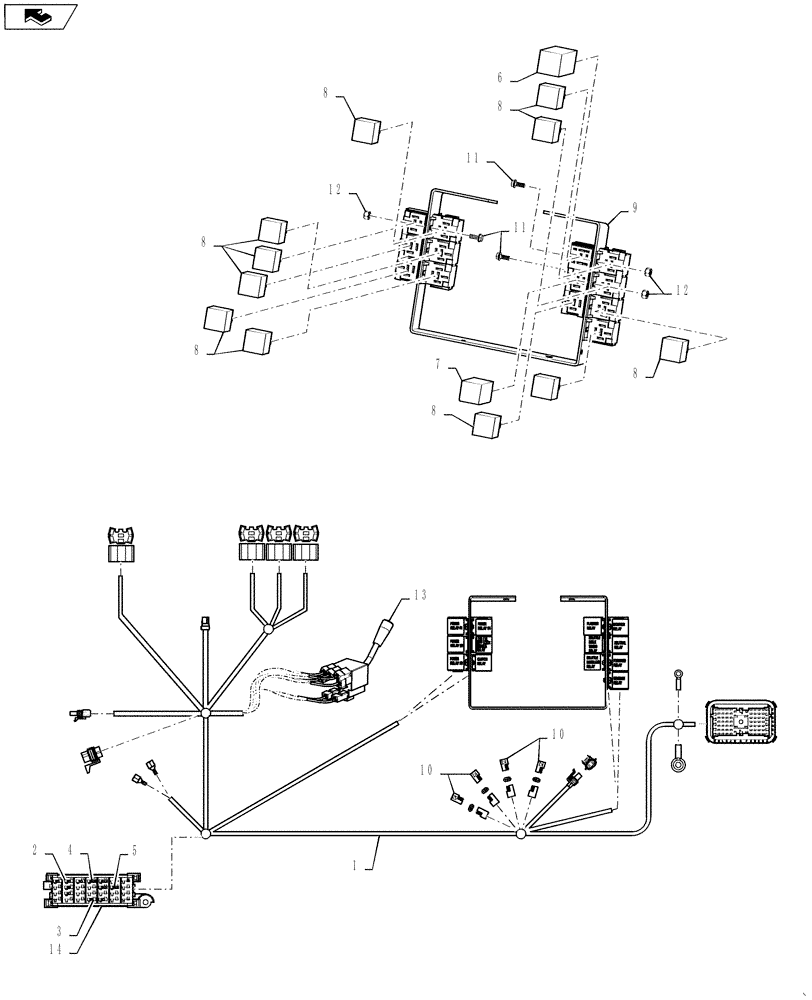

Схема запчастей Case 580SN WT - (55.512.14[03]) - HARNESS - FRONT CONSOLE (55) - ELECTRICAL SYSTEMS
10
2
8
14
9
4
13
7
3
8
6
1
8
8
8
11
5
12
8
11
home
10
12

Артикул

Название

Примечание

Количество

1

87584546

WIRE HARNESS

Front Console

1шт.

2

121412A1

FUSE,10A, Mini, Red

Red

5шт.

3

121413A1

FUSE,15A, Mini, Blue

Blue

2шт.

4

121414A1

FUSE,20A, Mini, Yellow

Yellow

2шт.

5

121416A1

FUSE,30A, Mini, Green

Green

2шт.

6

87578455

RELAY,12V, Turn Signal and Hazard

1шт.

7

347706A3

RELAY,12V, 5A

Time delay 12V 5A

1шт.

8

87436836

RELAY,12V, 40 Amp

Mini 12V 40A

11шт.

9

361900A1

BRACKET

Relay Mounting

1шт.

10

L71879

DIODE ELEMENT,400V, 3A

isolation

4шт.

11

87301687

SCREW,HWH, #10 - 32 x 1/2"

7шт.

12

231-24409

NUT,#10-32

7шт.

13

389487A1

LIGHT SWITCH

Turn Signal, Driving Lights, Horn

1шт.

14

144421A1

CONNECTING BLOCK

Fuse Block

1шт.

14

196160A1

BASE

Blue Secondary Lock; TPA (Not Illustrated)

1шт.

Выбрано товаров: 15
