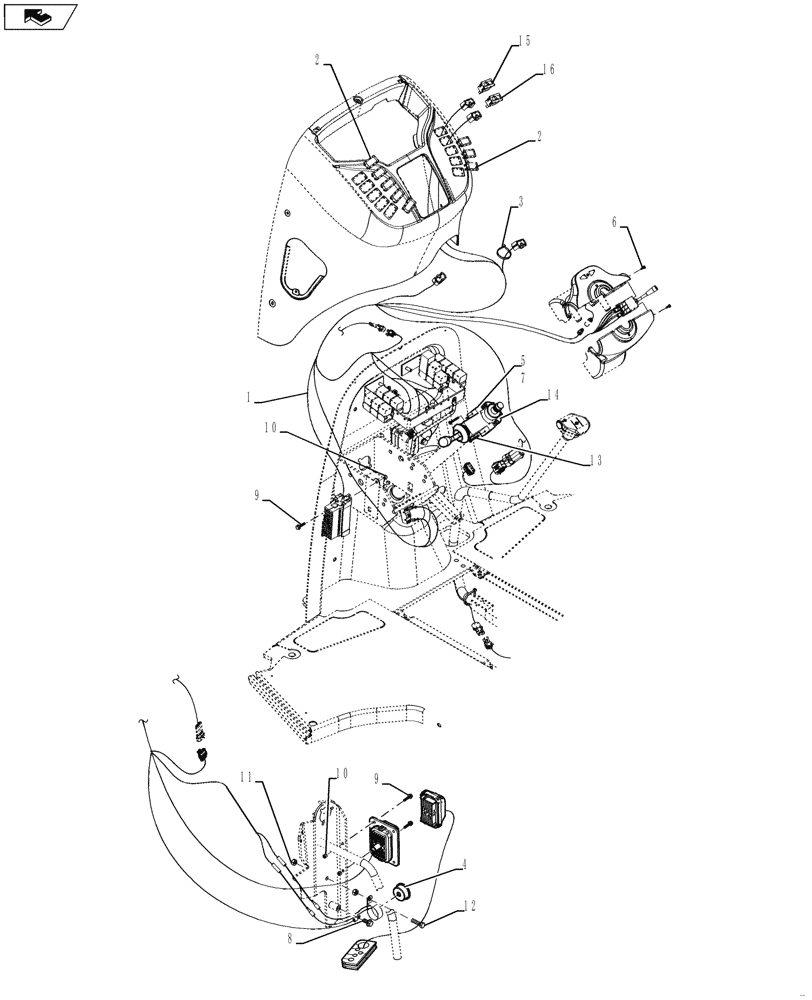

Запчасти Case 580SN WT (55.512.14[01]) - HARNESS - FRONT CONSOLE, SWITCHES (55) - ELECTRICAL SYSTEMS

1

87584546

WIRE HARNESS

1шт.

2

126844A1

PLUG,1.427” x .62” , Plastic

18шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

4

D137468

BUZZER

1шт.

5

231520A2

SWITCH

For Power Shift Transmission

1шт.

6

84178909

SCREW,M4 x 12mm

2шт.

7

278328A1

SWITCH

F-N-R Lever W/ Switch - For Standard Shift Transmission

1шт.

8

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

9

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

3шт.

10

832-10406

NUT,M6 x 1, Cl 8

3шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

12

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

13

397990A1

SCREW,Phillips Drive, Pan HD, M5 x 0.8 x 35mm

2шт.

14

366889A2

HALF-COLLAR

HALF COLLAR

1шт.

Use with Steering Column 352568A1

1шт.

14

47575664

COLLAR

HALF COLLAR

1шт.

Use with Steering Column 47853618

1шт.

14

47575664

COLLAR

HALF COLLAR

1шт.

Use with Steering Column 352569A4

1шт.

15

386849A1

ROCKER SWITCH

Work Lights

1шт.

16

386850A1

ROCKER SWITCH

Hazard Lights

1шт.
