Запчасти Case 580SN WT (55.512.13) - VAR 423061, 423062 - HARNESS INSTALL - FRONT CONSOLE, S AND H TYPE POWERSHIFT TRANSMISSION (580SN, 580SN WT, 590SN ) (55) - ELECTRICAL SYSTEMS

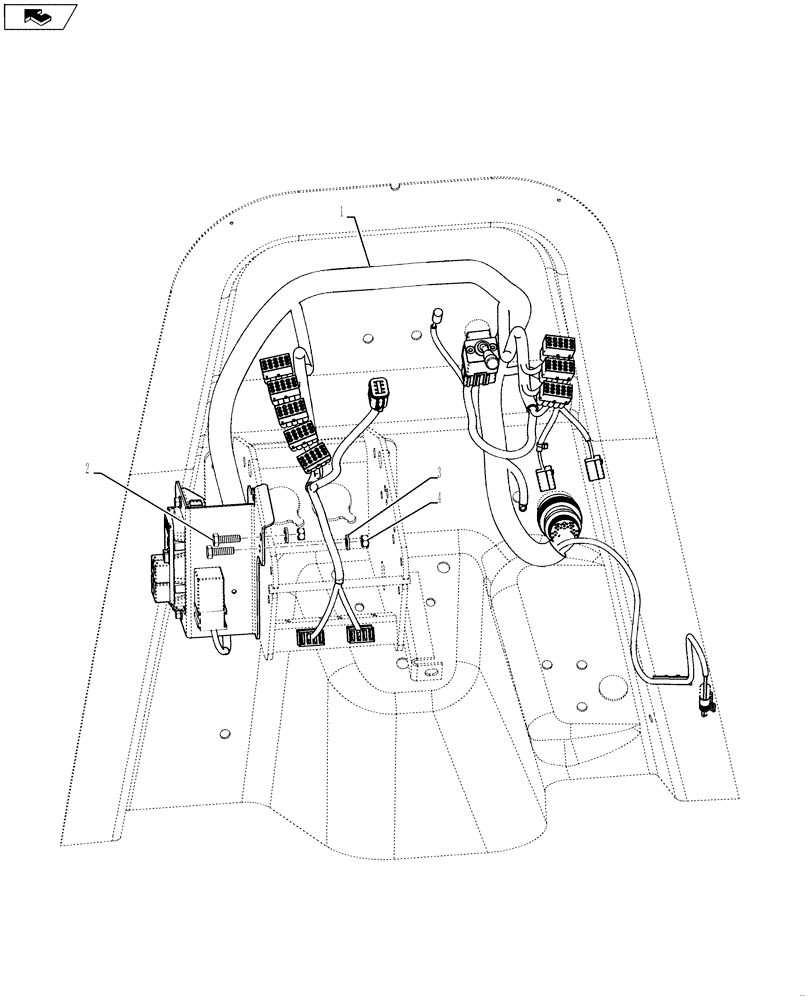

Схема запчастей Case 580SN WT - (55.512.13) - VAR 423061, 423062 - HARNESS INSTALL - FRONT CONSOLE, S AND H TYPE POWERSHIFT TRANSMISSION (580SN, 580SN WT, 590SN ) (55) - ELECTRICAL SYSTEMS
3
2
home
1
4

Артикул

Название

Примечание

Количество

1

84342261

WIRE HARNESS

2WD & 4WD Powershift Transmission

1шт.

1

84292425

HARNESS

2WD & 4WD Powershift Transmission, Start Year: 01-AUG-12

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

3

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

Выбрано товаров: 5
