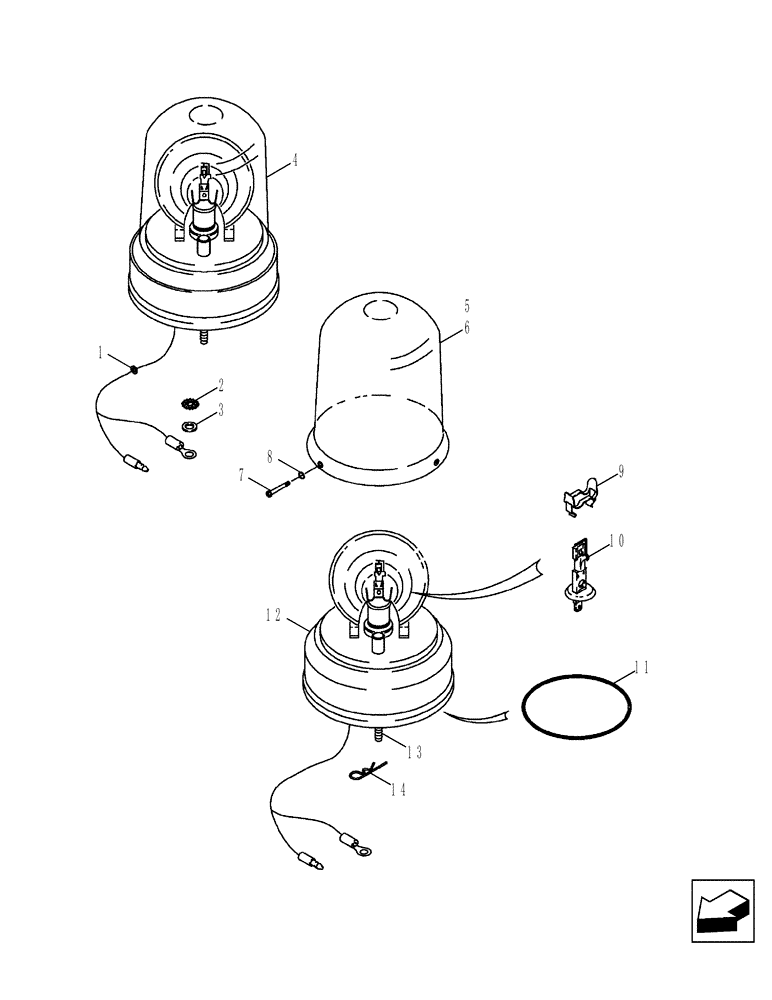

Запчасти Case 580SN WT (55.408.01) - BEACON, ROTATING (CAB OR CANOPY MODELS) (55) - ELECTRICAL SYSTEMS

84292396

SERVICE KIT

Rotating Beacon; Amber, 12V; Inc 1 - 5, 7 - 16 and Instructions

1шт.

1

A23870

GROMMET

1шт.

2

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

Ground

1шт.

3

495-21031

WASHER,1/4"

1шт.

4

108366A1

BEACON

Rotating; Amber, 12V; Inc 5, 7 - 14

1шт.

5

A187542

LENS

Amber; If Used

1шт.

6

127158A1

LENS

Blue; Optional; Not Included In Kit, Purchase Separately; If Used

1шт.

7

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

3шт.

8

238-5005

O-RING,0.094" ID x 0.062" Width

3шт.

9

101531A1

CLIP

1шт.

10

86616248

BULB,H1, 12V, 55W

1шт.

11

A187575

O-RING

Drive Motor

1шт.

12

NSS

NOT SOLD SEPARAT

BASE With Drive Motor

1шт.

13

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

14

136-54

PIN

1/4 x 11/16

3шт.

15

84222284

BEACON SWITCH

Rotating, (Not Shown)

1шт.

16

121412A1

FUSE,10A, Mini, Red

(Not Shown)

1шт.

17

84292398

WIRE HARNESS

(Not Shown)

1шт.
