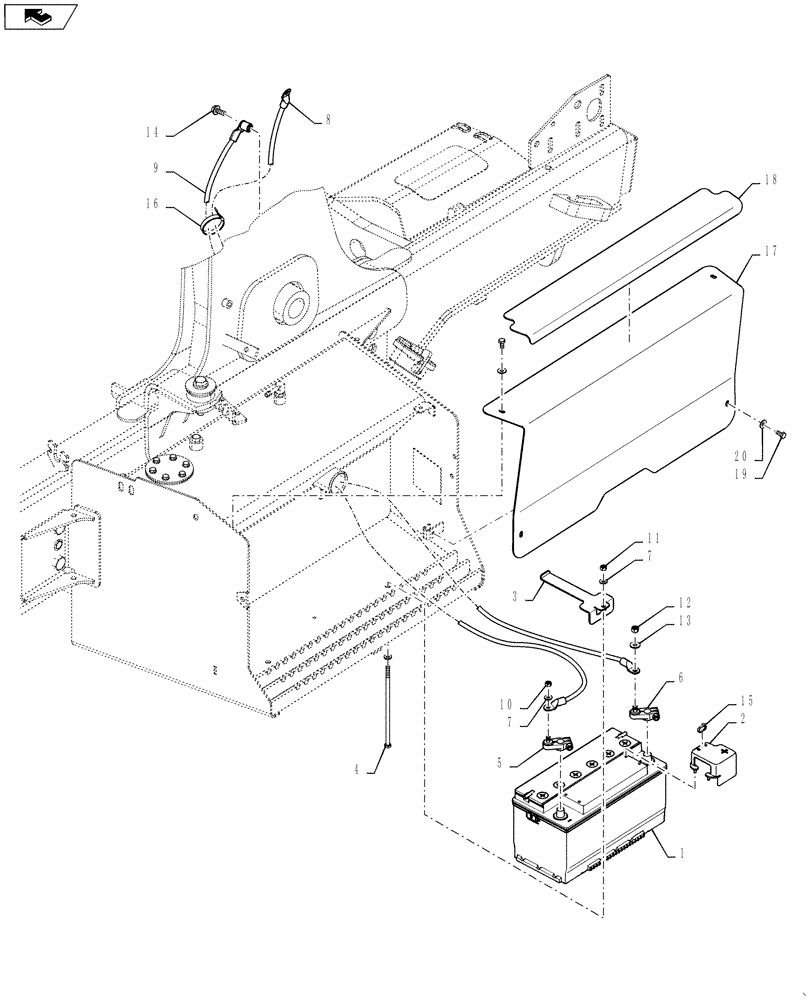

Запчасти Case 580SN WT (55.301.08) - BATTERY, SINGLE (55) - ELECTRICAL SYSTEMS

1

87403835

WET BATTERY,Group 49, 12V, 850CCA

12V; 850 CCA; 95 AH

1шт.

2

87664021

COVER

1шт.

3

87653377

BRACKET

1шт.

4

87522766

BOLT,Hex, M8 x 220mm, Cl 8.8

1шт.

5

87735578

TERMINAL CONNECTOR,5/16 - 18 Stud

1шт.

6

87735577

TERMINAL CONNECTOR,3/16 - 18 Stud

1шт.

7

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

3шт.

8

87610680

NEG BATTERY CABLE,1200mm L

1шт.

9

87610679

POS BATTERY CABLE

1шт.

10

425-105

NUT,5/16"-18, G5

1шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

12

425-106

NUT,3/8"-16, Cl 5

1шт.

13

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

14

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

1шт.

15

87486703

CABLE TIE,312mm L

CABLE STRAP

1шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

17

84281665

COVER

Battery

1шт.

18

87719444

ANTI-SKID STRIP

1шт.

19

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

20

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
