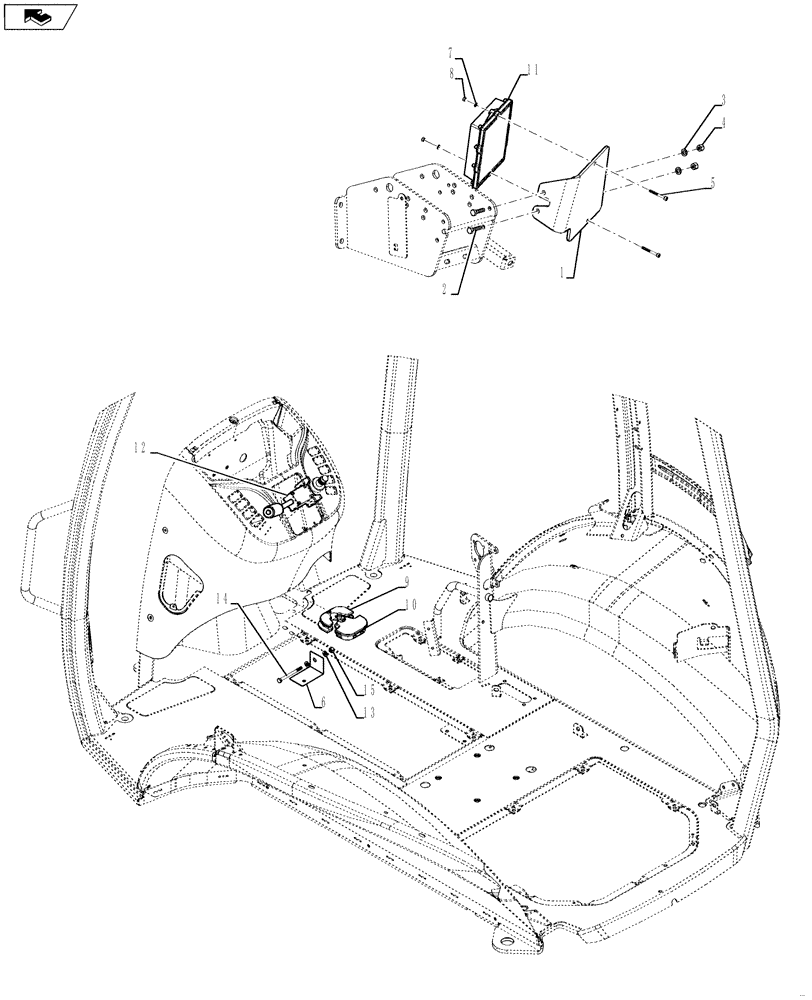

Запчасти Case 580SN WT (55.100.40) - ELECTRICAL - TRANSMISSION, POWERSHIFT S TYPE (580SN, 580SN WT, 590SN) (55) - ELECTRICAL SYSTEMS

1

87644491

BRACKET

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

5

864-5040

HEX SOC SCREW,M5 x 40mm, Cl 8.8

2шт.

6

84328358

BRACKET

1шт.

7

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

8

824-1405

NUT,M5, Cl 5

2шт.

9

397443A2

SEAL,110mm L

Shift Lever Hole Plug

1шт.

10

397493A2

SEAL,106mm L

Shift Lever Hole Plug

1шт.

11

84278195

ECU

Trax Control Unit

1шт.

11

84278195R

REMAN ELECT CONTROL

580SN, 580SN WT, 590SN, All LOADER BACKHOE, TIER 3, TRANSMISSION, POWERSHIFT S TYPE

1шт.

11

84278195C

CORE-ELECTRONIC CONT

Return Number

1шт.

12

231520A2

SWITCH

1шт.

13

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

14

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

1шт.

15

412250

NUT,M8 x 1.25, Cl 8

1шт.
