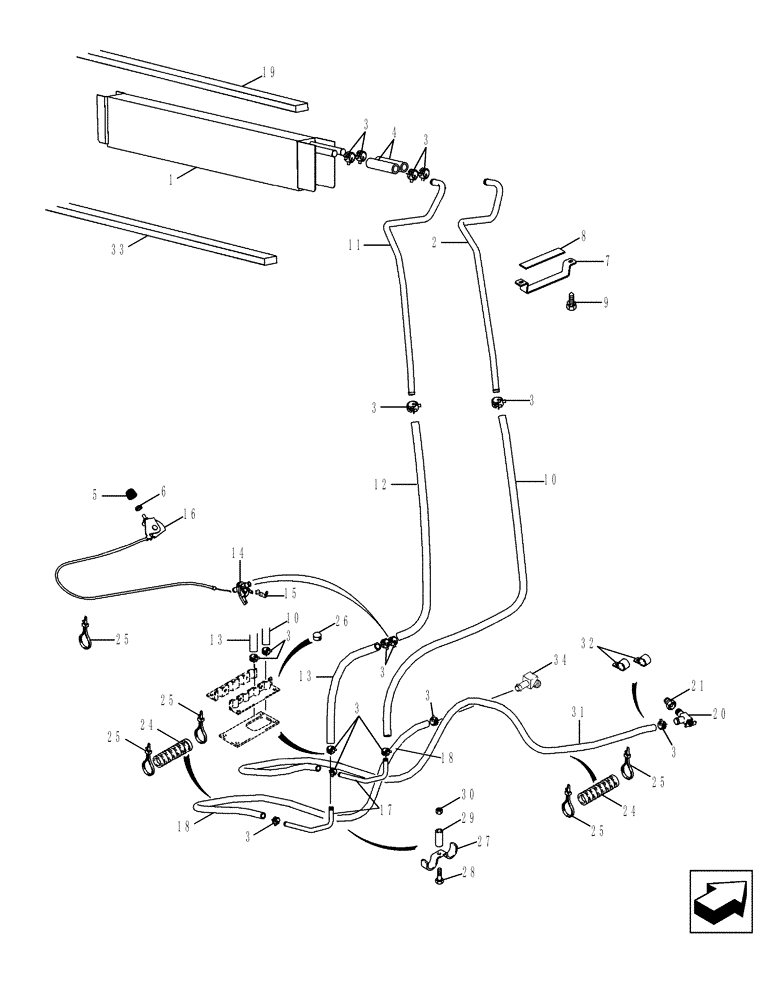

Запчасти Case 580SN WT (50.104.01) - CAB - HEATER (50) - CAB CLIMATE CONTROL

1

360262A2

CORE

Mounts In Blower Housing Box; Seal Mounts On Top Of Core On Models With Heat Only

1шт.

2

400282A1

HEATER TUBE

Front

1шт.

3

1954736C1

HOSE CLAMP,#24

14шт.

4

377222A1

HEATER HOSE,24mm ID x 100mm L

100 mm; Cut from 97252CX

2шт.

5

400379A1

KNOB,23mm

23 mm

1шт.

6

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

1шт.

7

388762A1

BRACKET

1шт.

8

389402A1

RUBBER STRIP

1шт.

9

281-14520

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/4"

2шт.

10

368801A2

HEATER HOSE,24mm ID x 1361mm L, SAEJ2020R3

1361 mm; Cut from 97252CX

1шт.

11

400280A1

HEATER TUBE

Rear

1шт.

12

448428A1

HEATER HOSE,24mm ID x 1175mm L, SAEJ2020R3

1175 mm (46-1/4 in); Heater Valve To Core; Cut From 97252CX

1шт.

13

448429A1

HEATER HOSE,24mm ID x 150mm L, SAEJ2020R3

150 mm (5-29/32 in) Floor To Valve; Cut From 97252CX

1шт.

14

1331087C1

HEATER VALVE

Heater

1шт.

15

1954626C1

SPRING CLIP

1шт.

16

1999666C1

CONTROL,862.4mm L

Heater; Includes 1999667C1, 1999668C1

1шт.

1999667C1

CONTROL

1шт.

1999668C1

CABLE,856mm L

1шт.

17

190675A1

TUBE,15.88 mm OD, 295 mm Length

2шт.

18

377232A2

HEATER HOSE

2650 mm (104-21/64"); Heater; Return to Water Pump; Cut from 97252CX

1шт.

19

406287A1

SEALING STRIP,19mm W x 736mm L x 19mm Thk

Location Of Seal On Models With Heat Only; On Models With Air Conditioning, Seal Is Located On Evaporator Core

1шт.

20

87686604

SHUT-OFF VALVE

1шт.

21

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

1шт.

24

D132982

PADDLE,26.87mm ID x 400mm L

Sleeve

7шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

6шт.

26

353-410

PLUG,Dome, .875" hole, Nylon

Models with Heat Only

2шт.

27

D143427

CLAMP

1шт.

28

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

29

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

1шт.

30

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

31

377233A2

HEATER HOSE

1830 mm (72-3/64"); Heater; Inlet from Engine; Cut from 97252CX

1шт.

32

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

2шт.

33

1987096C1

PLATE

(Seal), Below Heater Core; Location of Seal on Models with Heat Only; On Models with Air Conditioning, Seal is Located at Rear of Housing

1шт.

34

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

34

217-425

45 ELBOW,5/8" Hose Barb x 3/4" NPTF

If Used

1шт.
