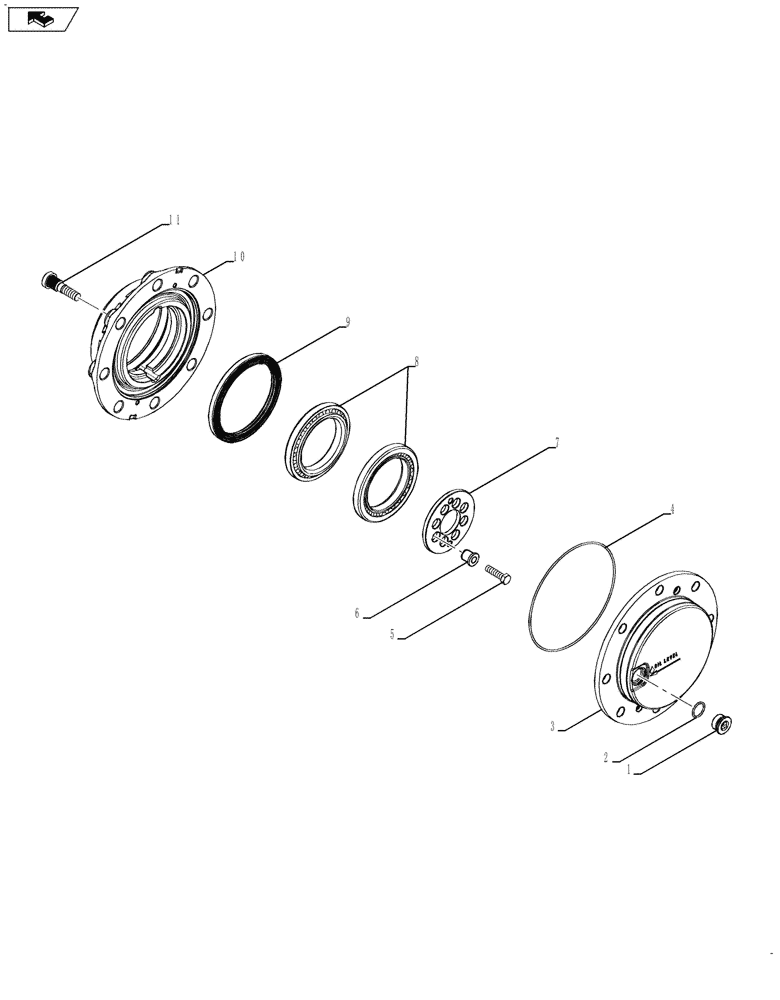

Запчасти Case 580SN WT (44.101.04[02]) - AXLE, FRONT - HUB AND BEARINGS (580SN WT, 590SN) (44) - WHEELS

1

84272055

PLUG,M30 x 2

1шт.

2

9626929

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

3

84210797

COVER

1шт.

4

14468780

O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro

1шт.

5

84273747

LOCK BOLT,Hex, M12 x 1.75 x 45mm, LH Thd

8шт.

6

84252637

SLEEVE,12.55mm ID x 20.080mm OD x 25mm Thk

8шт.

7

84211140

FLANGE

1шт.

8

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

2шт.

9

87349641

OIL SEAL,150mm ID x 180mm OD x 14.5/16mm Thk

1шт.

10

84297567

HUB

1шт.

11

84264323

STUD,M18 x 1.5 x 71.2mm

8шт.
