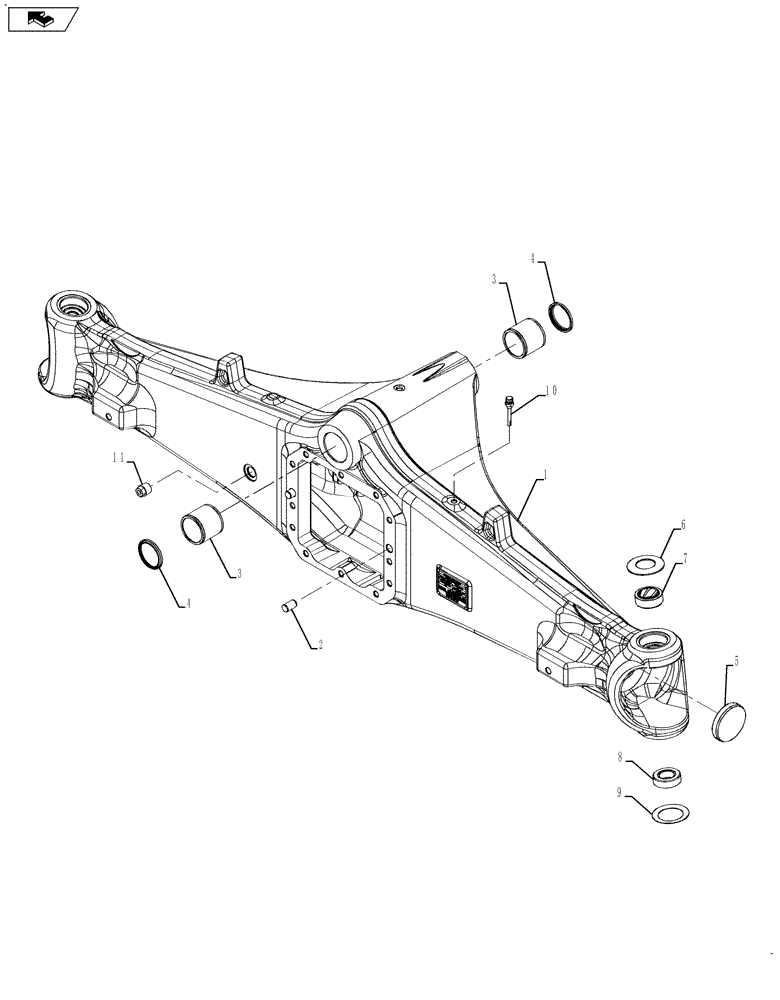

Запчасти Case 580SN WT (44.100.16[02]) - AXLE, FRONT - HOUSING (580SN WT, 590SN) (44) - WHEELS

1

84310708

AXLE

1шт.

2

4985062

DOWEL,15mm OD x 25mm L

2шт.

3

87748946

BUSHING,50.21mm ID x 60.03mm OD x 54mm L

2шт.

4

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

2шт.

5

8421102

SPARE PART

2шт.

6

84241623

SPRING,Belleville, 36.13mm ID x 70.85mm OD x 2.26mm Thk

2шт.

7

84241615

GROOVED BUSHING,35mm ID x 52mm OD x 20mm L

2шт.

8

87523063

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

2шт.

9

84241624

SPRING,Belleville, 47.63mm ID x 69.85mm OD x 0.97mm Thk

2шт.

10

84258517

BREATHER,M10 x 1

1шт.

11

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.
