(41.216.05[01]) - AXLE, FRONT - CYLINDER, STEERING (580SN, 580SN WT)

Запчасти Case 580SN WT (41.216.05[01]) - AXLE, FRONT - CYLINDER, STEERING (580SN, 580SN WT) (41) - STEERING

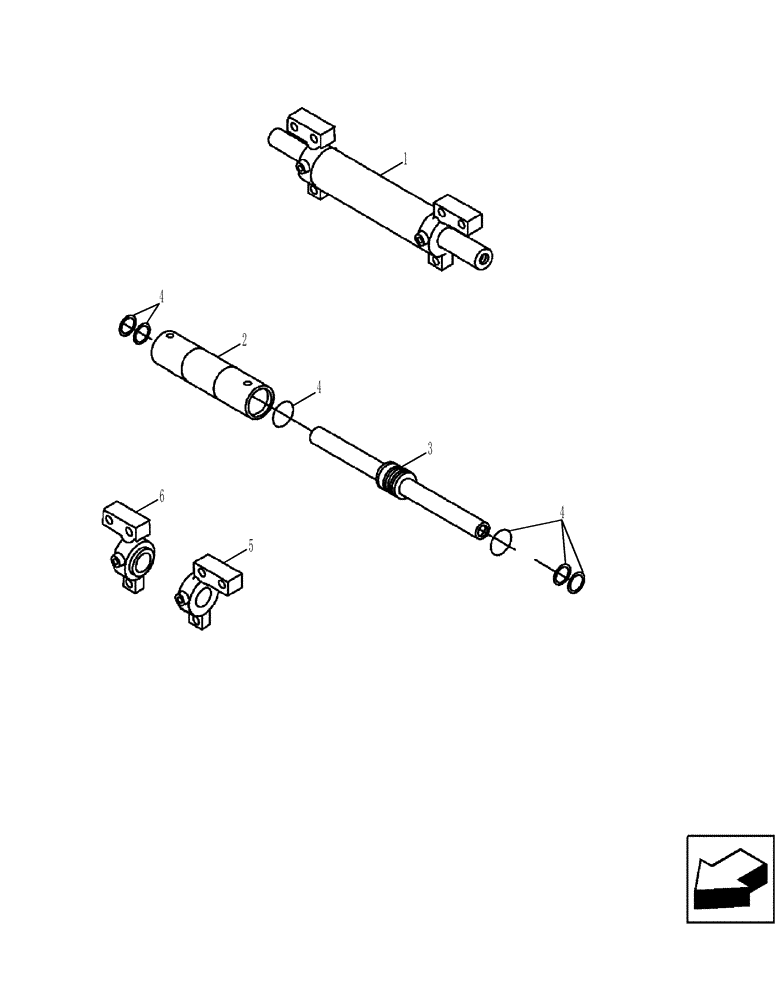

Схема запчастей Case 580SN WT - (41.216.05[01]) - AXLE, FRONT - CYLINDER, STEERING (580SN, 580SN WT) (41) - STEERING
1
2
4
5
4
3
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

86990837

AXLE

Front, Two Wheel Drive, Inc 1 - 6

1шт.

1

401055A1

STEERING CYLINDER

(Two Wheel Drive) Inc Ref 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE Cylinder

1шт.

3

401062A1

PISTON ROD

1шт.

4

401061A1

SEAL KIT

Component Parts Not Serviced Separately

1шт.

5

401063A1

HEAD ASSY.

Right-Hand

1шт.

6

401064A1

HEAD ASSY.

Left-Hand

1шт.

Выбрано товаров: 7
