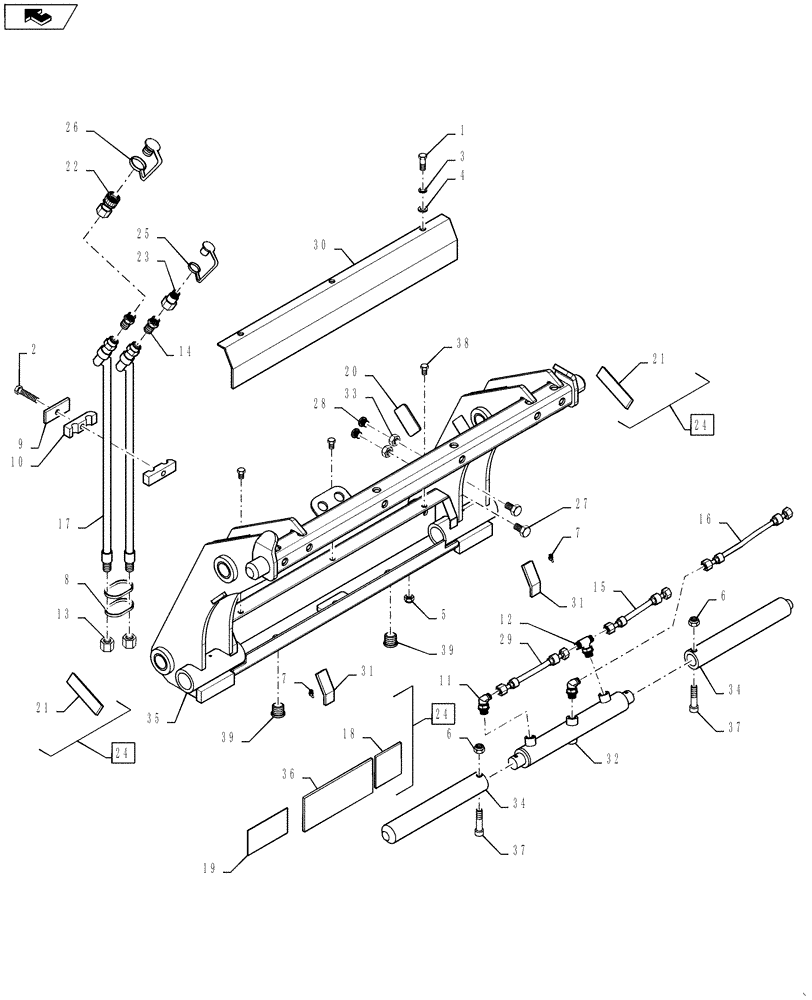

Запчасти Case 580SN WT (39.125.03) - COUPLER, TOOL QUICK (39) - FRAMES AND BALLASTING

84265982

COUPLING

QUICK COUPLER; Incl. Ref 1 - 39

1шт.

1

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

2

87626

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

3шт.

3

80681

LOCK WASHER,5/16"

1шт.

4

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

3шт.

5

86050277

NUT,5/16"-18, GB

1шт.

6

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

2шт.

7

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

8

NSS

NOT SOLD SEPARAT

Tie Strap

2шт.

9

87493782

PLATE

1шт.

10

87483067

CLAMP

1шт.

11

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

2шт.

12

84368922

BRANCH TEE,11/16"-16 ORFS x 9/16" ORB

Branch Tee; 11/16"-16 ORFS x 9/16"-18 ORB Adj

1шт.

13

NSS

NOT SOLD SEPARAT

Cap, FF, 10FF

2шт.

14

84523391

FITTING,3/8" ID, 3/8" OD

Bulkhead Fitting With Nut; 1"-14 ORFS x 1-1/16"-12 ORB

2шт.

15

84518946

HYDRAULIC HOSE,6.3mm ID x 244mm L

, Serial Range: Bulkhead-Tee

1шт.

16

84518948

HYDRAULIC HOSE,6.3mm ID x 353mm L

Bulkhead to Cyliinder Center

1шт.

17

84518949

HYDRAULIC HOSE,16mm ID x 1016mm L

Aux

2шт.

18

NSS

NOT SOLD SEPARAT

Decal, Warning High Pressure; Order 305508A1

1шт.

19

NSS

NOT SOLD SEPARAT

Decal, Read Operator's Manual; Order 305508A1

1шт.

20

NSS

NOT SOLD SEPARAT

Serial Plate

1шт.

21

NSS

NOT SOLD SEPARAT

Decal, Case Logo; Order 305508A1

2шт.

22

86537745

COUPLING, QUICK, FEM,27mm ID

1шт.

23

86537746

QUICK MALE COUPLING,27mm OD, 1.062 - 12" OD

1шт.

24

305508A1

DECAL KIT

Includes Ref. 18, 19, 21, 36

1шт.

25

NSS

NOT SOLD SEPARAT

Dust Cap, Male

1шт.

26

NSS

NOT SOLD SEPARAT

Dust Cap, Female

1шт.

27

84326219

90 ELBOW,9/16"-18 ORFS

Bulkhead Union Elbow; 90 deg. 9/16"-18 x 9/16"-18 ORFS

2шт.

28

87668376

CAP,9/16"-18 Inch THD

2шт.

29

84519649

HYDRAULIC HOSE,6.3mm ID x 241mm L

Tee to RH Cylinder Rod End

1шт.

30

84189105

COVER

Plate, Cover

1шт.

31

NSS

NOT SOLD SEPARAT

Foam Seal

2шт.

32

305499A1

HYDRAULIC CYLINDER,25.4mm Rod, 203.2mm Stroke

Double Acting

1шт.

305499A1R

REMAN-HYD CYLINDER

580N, 580SN, 580SN WT, 590SN ALL TIER 3

1шт.

305499A1C

CORE-HYD CYLINDER

Return Number

1шт.

33

87310

NUT,Jam, 9/16"-18, G2

2шт.

34

305496A1

PIN,49.23mm OD x 381mm L

2шт.

35

NSS

NOT SOLD SEPARAT

Main Frame

1шт.

36

NSS

NOT SOLD SEPARAT

Label, Warning-Engage Latch Pins (Large); Order 305508A1

1шт.

37

280259

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

2шт.

38

87472321

FASTENER

Threaded Insert, 5/16-18

3шт.

39

305497A1

PLUG,1.25" x 0.5"

2шт.
