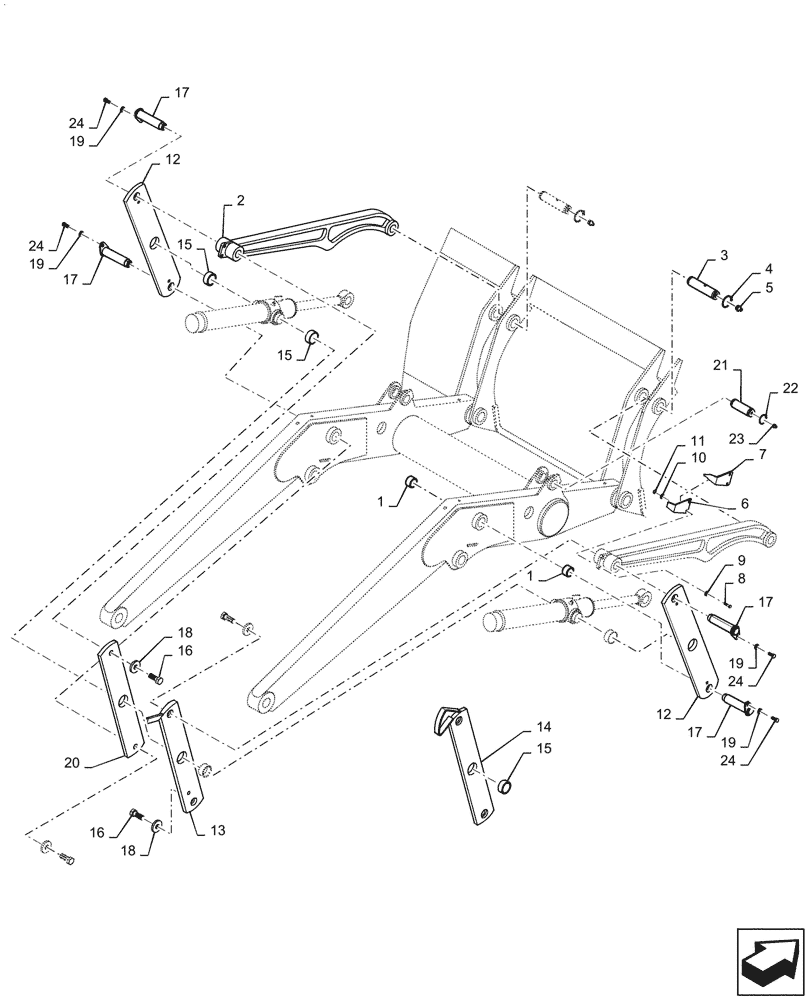

Запчасти Case 580SN WT (39.125.02) - FRAME - LOADER LINKAGE (39) - FRAMES AND BALLASTING

1

100696A1

BUSHING,38.41mm ID x 47.65mm OD x 28.6mm L

(2 bushings per Arm)

4шт.

2

84216090

LINK

2шт.

3

84367828

PIN,40mm OD x 180mm L

2шт.

4

800-44040

SNAP RING,M40, Ext

4шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

8шт.

6

D121194

POINTER

Models Without Clam Bucket

1шт.

7

250851A1

POINTER

Models With Clam Bucket

1шт.

8

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

892-11008

LOCK WASHER,8mm ID

2шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

12

47631762

LINK

Outer

2шт.

13

84301390

LINK BLOCK

Inner, Right Hand - Without 4-in-1 (580SN WT)

1шт.

14

84301392

LINK BLOCK

Inner, Right Hand - 4-in-1 (580SN WT)

1шт.

15

D151034

BUSHING,50.23mm ID x 60mm OD x 25.4mm L

One End Closed

1шт.

16

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

4шт.

17

84270815

PIN,38.07mm OD x 173.5mm L

(Flag Pin)

4шт.

18

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

4шт.

19

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

Flag Pin to Link

5шт.

20

47631857

LINK

Inner, Left Hand (580SN WT)

1шт.

21

84216893

PIN,44.4mm OD x 138.5mm L

2шт.

22

86625149

SNAP RING,#175, Ext

8шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

8шт.

24

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

Flag Pin to Link

4шт.
