(39.121.07a) - BACKHOE - DIPPER, STANDARD, W/O HYD COUPLER (580SN, 580SN WT)

Запчасти Case 580SN WT (39.121.07a) - BACKHOE - DIPPER, STANDARD, W/O HYD COUPLER (580SN, 580SN WT) (39) - FRAMES AND BALLASTING

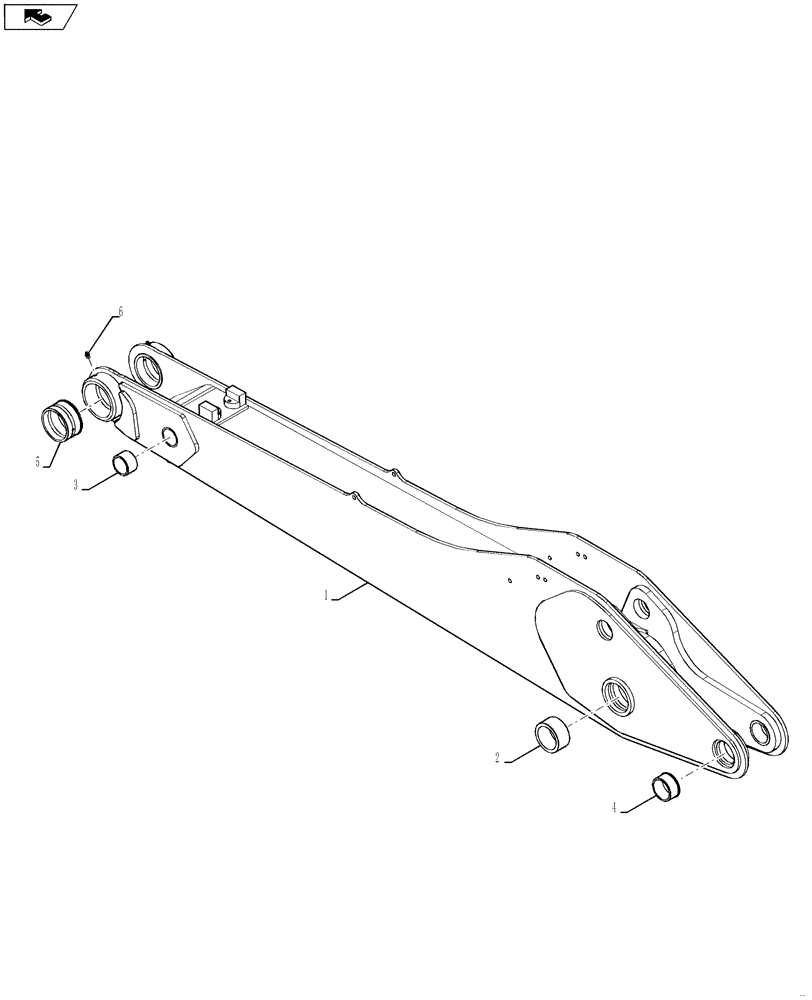

Схема запчастей Case 580SN WT - (39.121.07a) - BACKHOE - DIPPER, STANDARD, W/O HYD COUPLER (580SN, 580SN WT) (39) - FRAMES AND BALLASTING
4
2
3
6
5
1
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84246484

Incl 2 - 4

DIPPER

1шт.

2

D137218

BUSHING,70.19mm ID x 90mm OD x 44mm L

2шт.

3

84170645

BUSHING,50.19mm ID x 60mm OD x 36mm L

2шт.

4

84223633

BUSHING,60.19mm ID x 69.98mm OD x 34mm L

2шт.
