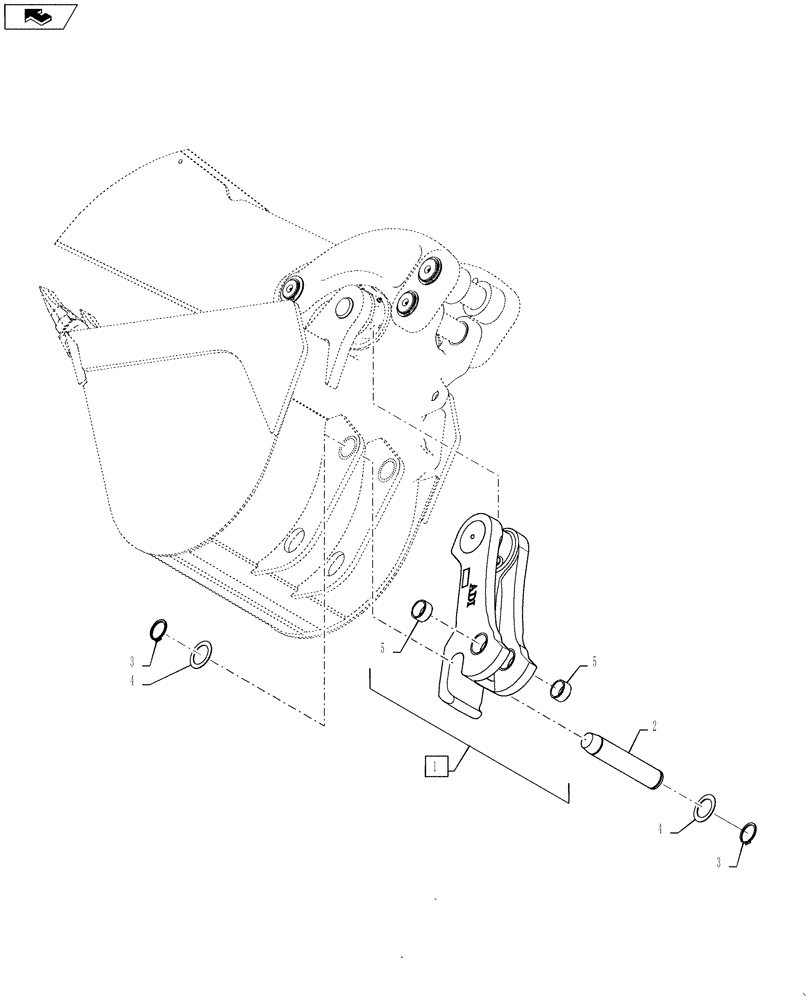

Запчасти Case 580SN WT (39.121.06[02]) - BACKHOE - HYDRAULIC COUPLER LINK AND BUCKET PIN (580SN, 580SN WT, 590SN) (39) - FRAMES AND BALLASTING

1

84300173

LINK ASSY.

580SN, 580SN WT; Incl. Ref 5

1шт.

1

84300169

LINK ASSY.

590SN; Incl. Ref 5

1шт.

2

84223653

PIN,50mm OD x 246.1mm L

1шт.

3

87016943

RING, SNAP,50mm ID , Ext

RING SNAP

2шт.

4

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

2шт.

5

84227018

BUSHING,50.19mm ID x 59.98mm OD x 29mm L

580SN, 580SN WT

2шт.

5

84229923

BUSHING,55.19mm ID x 64.98mm OD x 29mm L

590SN

2шт.
