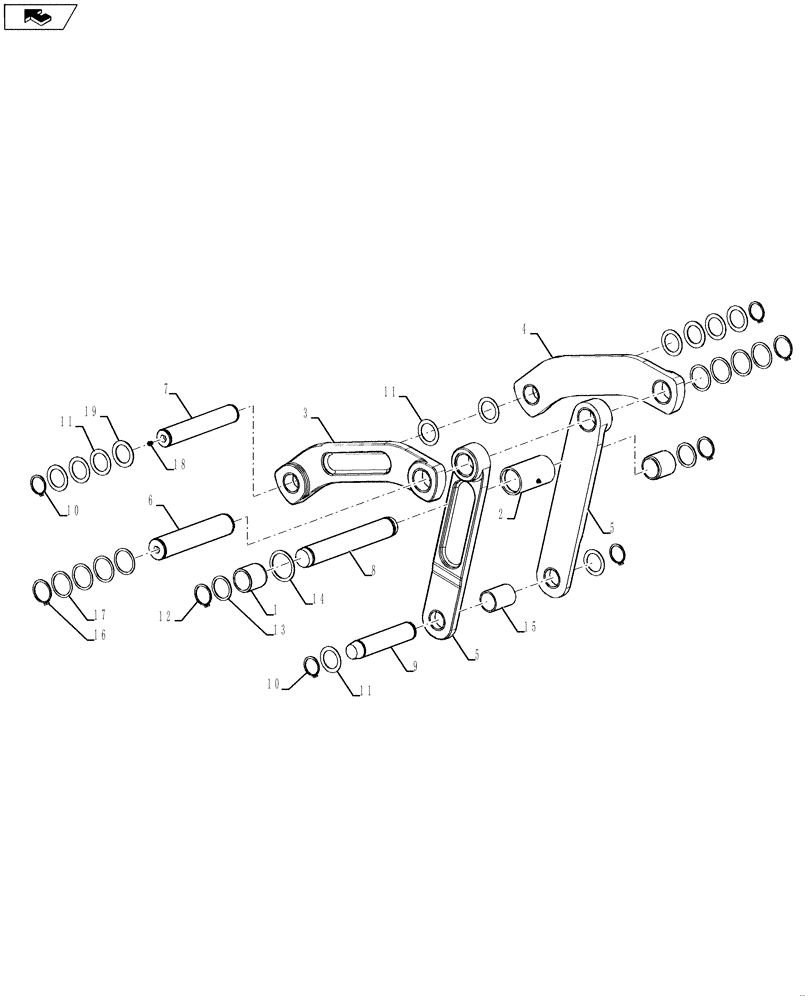

Запчасти Case 580SN WT (39.121.05) - BACKHOE - LINK, STRAIGHT (580N, 580SN, 580SN WT) (39) - FRAMES AND BALLASTING

1

84247142

BUSHING,55.28mm ID x 67.55mm OD x 68mm L

Bucket to Dipper End

2шт.

2

84247140

SPACER,64.5mm ID x 79mm OD x 140mm L

Bucket to Dipper End

1шт.

3

84230684

LINK ASSY.

1шт.

4

84230685

LINK ASSY.

1шт.

5

84230693

LINK ASSY.

2шт.

6

84171217

PIN,60mm OD x 294.78mm L

Backhoe Link

1шт.

7

84171343

PIN,50mm OD x 291.76mm L

Backhoe Link

1шт.

8

84223654

PIN,55mm OD x 372.6mm L

Bucket to Dipper End

1шт.

8

84409739

PIN,55mm OD x 340.8mm L

12 Inch Bucket to Dipper End

1шт.

9

84223653

PIN,50mm OD x 246.1mm L

Bucket

1шт.

10

87016943

RING, SNAP,50mm ID , Ext

RING SNAP

4шт.

11

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

14шт.

12

84233536

RING,55mm ID, Ext

Bucket to Dipper End

2шт.

13

84231927

SHIM,57mm ID x 70mm OD x 2.77mm Thk

Bucket to Dipper End

2шт.

14

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

Bucket to Dipper End

1шт.

15

84333098

SPACER,51mm ID x 60.8mm OD x 82mm L

1шт.

15

84425442

SPACER,51mm ID x 60.8mm OD x 29mm L

Use with lift hook

2шт.

16

84224886

RING,60mm ID, Ext

2шт.

17

84224845

SHIM,62mm ID x 75mm OD x 1.5mm Thk

16шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

5шт.

19

495-81282

WASHER,2 1/16" x 3" x .109"

2шт.

20

84425437

LIFT HOOK

(Not Shown)

1шт.
