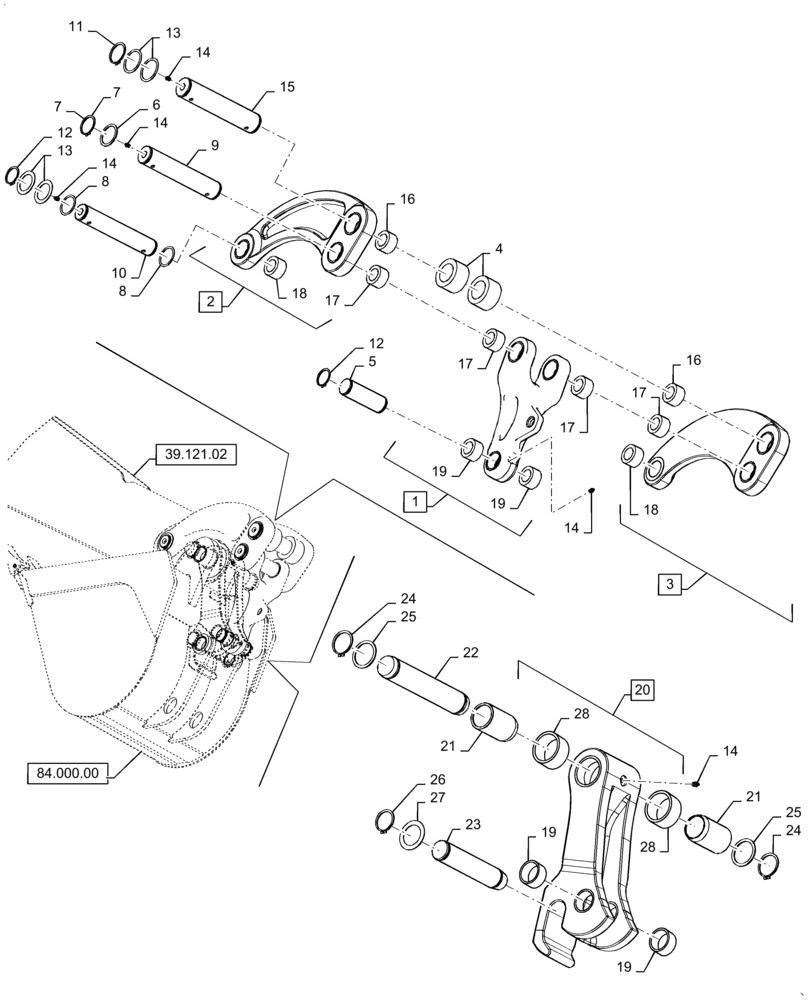

Запчасти Case 580SN WT (39.121.03) - BACKHOE - COUPLER AND BUCKET PINS (580N, 580SN, 580SN WT) (39) - FRAMES AND BALLASTING

1

84530015

LINK BLOCK

Assy, Incl 17 (q.ty 2), 19

1шт.

2

84229982

LINK ASSY.

LH; Incl 16 - 18

1шт.

3

84229983

LINK ASSY.

RH; Incl 16 - 18

1шт.

4

84170641

SPACER,60.19mm ID x 94.7mm OD x 52mm L

2шт.

5

84223652

PIN,50mm OD x 151mm L

Dump link to Coupler

1шт.

6

84231927

SHIM,57mm ID x 70mm OD x 2.77mm Thk

2шт.

7

84233536

RING,55mm ID, Ext

55 mm

2шт.

8

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

6шт.

9

84231908

PIN,55mm OD x 291.76mm L

Backhoe Link

2шт.

10

84171343

PIN,50mm OD x 291.76mm L

Backhoe Link

1шт.

11

84224886

RING,60mm ID, Ext

60 mm

2шт.

12

87016943

RING, SNAP,50mm ID , Ext

50 mm

4шт.

13

84224845

SHIM,62mm ID x 75mm OD x 1.5mm Thk

4шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

8шт.

15

84171217

PIN,60mm OD x 294.78mm L

Backhoe Link

1шт.

16

84170654

BUSHING,60.19mm ID x 70mm OD x 38mm L

2шт.

17

84229922

BUSHING,55.19mm ID x 65mm OD x 38mm L

4шт.

18

84170645

BUSHING,50.19mm ID x 60mm OD x 36mm L

2шт.

19

84227018

BUSHING,50.19mm ID x 59.98mm OD x 29mm L

2шт.

20

84229979

LINK ASSY.

Incl 19, 28

1шт.

21

84224880

BUSHING,55.28mm ID x 67.53mm OD x 104mm L

Bucket to Dipper End

2шт.

22

84223654

PIN,55mm OD x 372.6mm L

Bucket to Dipper End

1шт.

22

84409739

PIN,55mm OD x 340.8mm L

12 Bucket to Dipper End

1шт.

23

84223653

PIN,50mm OD x 246.1mm L

Bucket

1шт.

24

84233536

RING,55mm ID, Ext

Bucket to Dipper End

1шт.

25

84231927

SHIM,57mm ID x 70mm OD x 2.77mm Thk

Bucket to Dipper End

2шт.

26

87016943

RING, SNAP,50mm ID , Ext

2шт.

27

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

2шт.

28

84227023

BUSHING,67.75mm ID x 79.98mm OD x 30mm L

2шт.
