(39.105.10[01]) - BACKHOE - BOOM AND SWING TOWER, BUSHING

Запчасти Case 580SN WT (39.105.10[01]) - BACKHOE - BOOM AND SWING TOWER, BUSHING (39) - FRAMES AND BALLASTING

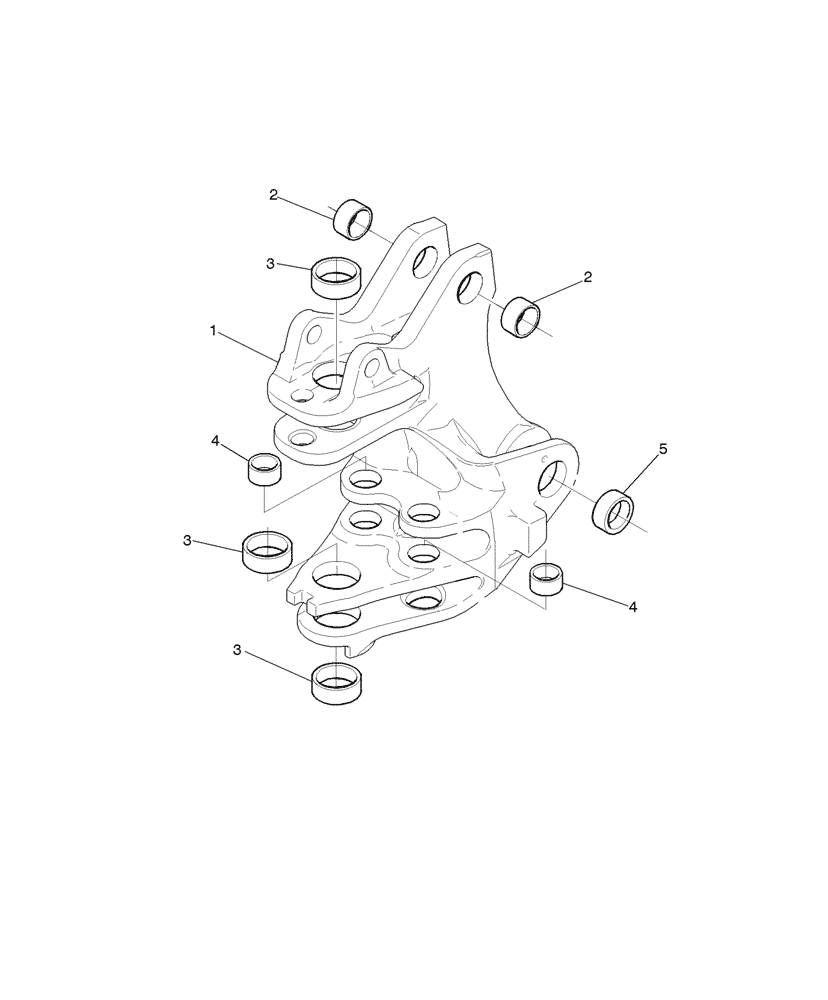

Схема запчастей Case 580SN WT - (39.105.10[01]) - BACKHOE - BOOM AND SWING TOWER, BUSHING (39) - FRAMES AND BALLASTING
2
2
3
1
5
3
4
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84304025

TOWER

Boom, Incl 2 - 5

1шт.

1

47557261

TOWER

Boom, Incl 2 - 5

1шт.

2

84230813

BUSHING,60.19mm ID x 70mm OD x 36mm L

2шт.

3

84235607

BUSHING,80mm ID x 96mm OD x 30mm L

4шт.

4

135249A1

BUSHING,50.96mm ID x 63.5mm OD x 28.6mm L

4шт.

5

84326988

BUSHING,60.19mm ID x 80mm OD x 24mm L

4шт.
