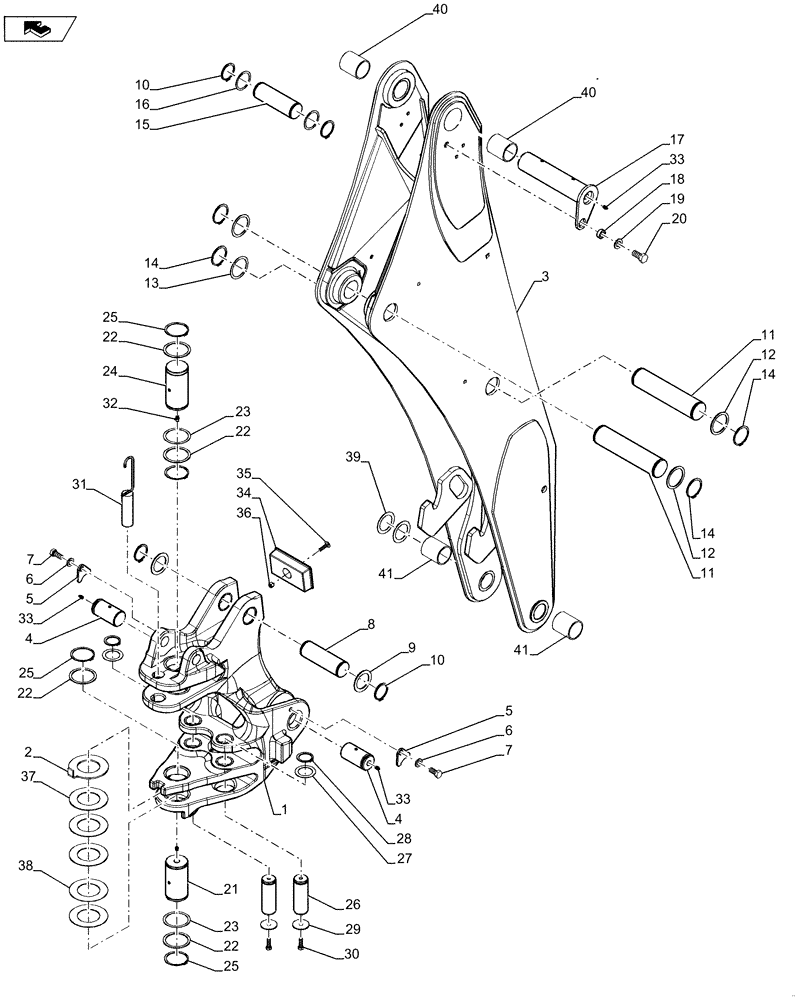

Запчасти Case 580SN WT (39.105.08) - BACKHOE - BOOM AND SWING TOWER (580SN, 580SN WT) (39) - FRAMES AND BALLASTING

1

84304025

TOWER

1шт.

2

84246814

SPECIAL WASHER,82mm ID x 144mm OD x 1.10mm Thk

1шт.

3

84238460

BOOM

14'

1шт.

4

84248744

PIN,59.9mm OD x 102mm L

2шт.

5

84246323

RETAINER,18mm ID

2шт.

6

NS

NOT SERVICED

2шт.

7

84246776

PREV TORQUE BOLT,Hex, M16 x 35mm, Cl 10.9

2шт.

8

84217316

PIN,60mm OD x 192mm L

1шт.

9

84255579

SHIM,62mm ID x 86mm OD x 3mm Thk

3шт.

10

84224886

RING,60mm ID, Ext

4шт.

11

84230833

PIN,70mm OD x 310.1mm L

2шт.

12

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

2шт.

13

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

2шт.

14

800-40070

SNAP RING,M70 Ext

4шт.

15

84217317

PIN,59.9mm OD x 192.1mm L

1шт.

16

84224845

SHIM,62mm ID x 75mm OD x 1.5mm Thk

2шт.

17

84217319

PIN,70mm OD x 317mm L

1шт.

18

122897A1

SPACER,21mm ID x 31.75mm OD x 12mm L

1шт.

19

NS

NOT SERVICED

1шт.

20

604-20040

BOLT,Hex, M20 x 40mm, Cl 8.8

1шт.

21

84249274

PIN,79.9mm OD x 152mm L

1шт.

22

D144485

SHIM,82mm ID x 98mm OD x 3.05mm Thk

4шт.

23

D144486

SHIM,82mm ID x 98mm OD x 1.57mm Thk

2шт.

24

84249275

PIN,79.9mm OD x 168mm L

1шт.

25

800-40080

SNAP RING,M80, Ext

4шт.

26

84261887

PIN,50.77mm OD x 146.7mm L

2шт.

27

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

2шт.

28

103-16200

SNAP RING,#200, Ext

2шт.

29

84265979

SPECIAL WASHER,13mm ID x 60mm OD x 3mm Thk

2шт.

30

86566268

LOCK BOLT,Prev Torque, Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

31

84412541

PIN ASSY.,40mm OD x 136.8mm L

1шт.

32

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

33

219-1

LUBE NIPPLE,1/8" - 27 NPTF

5шт.

34

84245639

BUMPER

1шт.

35

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

1шт.

36

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

37

84261891

SHIM,82mm ID x 140mm OD x 3mm Thk

3шт.

38

84261890

SHIM,82mm ID x 140mm OD x 2mm Thk

2шт.

39

123318A1

WASHER,62mm ID x 86mm OD x 1.7mm Thk

2шт.

40

84240578

BUSHING,70mm ID x 90mm OD x 50mm L

2шт.

41

84246051

BUSHING,60.19mm ID x 84mm OD x 39.8mm L

2шт.
