Запчасти Case 580SN WT (39.100.03) - CHASSIS - CAB MOUNTS, BARRIER CURTAIN, AND AIR INTAKE SCREEN (39) - FRAMES AND BALLASTING

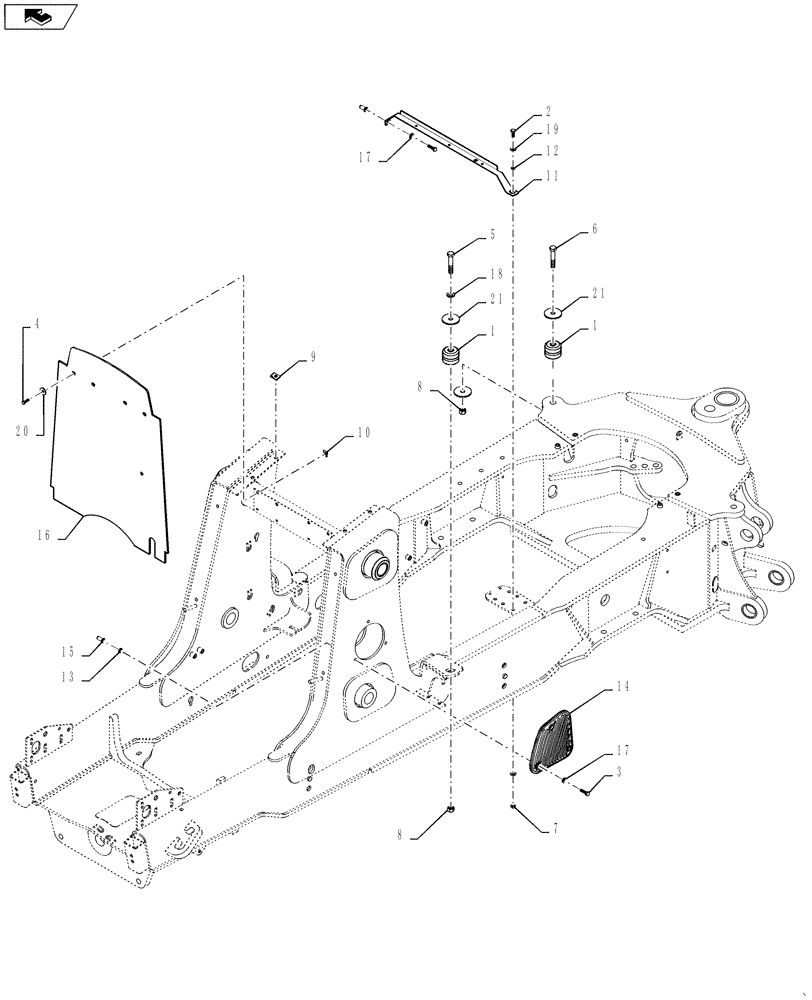

Схема запчастей Case 580SN WT - (39.100.03) - CHASSIS - CAB MOUNTS, BARRIER CURTAIN, AND AIR INTAKE SCREEN (39) - FRAMES AND BALLASTING
6
2
8
18
10
4
7
15
19
9
1
home
14
8
12
21
11
17
13
21
1
20
16
5
17
3

Артикул

Название

Примечание

Количество

1

411892A1

RUBBER MOUNTING

Isolator

4шт.

2

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

3

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

4

806-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9

4шт.

5

827-16085

BOLT,Hex, M16 x 2 x 85mm, Cl 10.9

2шт.

6

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

2шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

8

829-1416

NUT,M16, Cl 10

4шт.

9

833-40310

NUT,M10, U

4шт.

10

833-40408

NUT,M8, U

4шт.

11

84254110

BRACKET, SUPPORTING

C Channel

1шт.

12

84342280

SPACER,10.5mm ID x 15.5mm OD x 3mm Thk

1шт.

13

87310109

SPACER

3шт.

14

87324160

SCREEN

Air Intake

1шт.

15

87417383

THREADED INSERT,M8 x 1.25

4шт.

16

87652272

CURTAIN

Hanging Barrier

1шт.

17

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

18

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

2шт.

19

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

20

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

4шт.

21

47384148

WASHER,17mm ID x 70mm OD x 4.50mm, HTS ZNM

WASHER; Replaces 186797A1 This Application

6шт.

Выбрано товаров: 21
