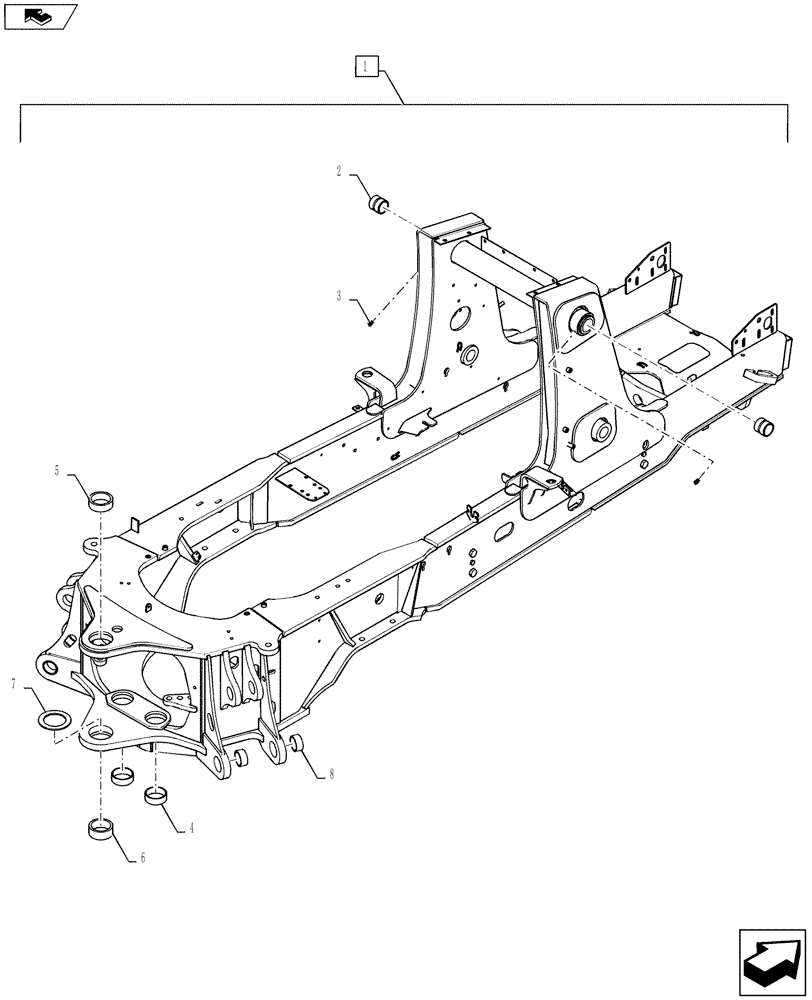

Запчасти Case 580SN WT (39.100.01) - CHASSIS - FRAME BUSHINGS (580N, 580SN, 580SN WT) (39) - FRAMES AND BALLASTING

1

NS

NOT SERVICED

CHASSIS; Main Frame; Inc 2 - 8

1шт.

2

84217542

BUSHING,50.23mm ID x 60mm OD x 55mm L

Cross Tube

2шт.

3

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

4

114318A1

BUSHING,80.19mm ID x 90mm OD x 29.35mm L

80 x 5 x 28.8

2шт.

5

84226809

BUSHING,80.19mm ID x 100mm OD x 32mm L

Backhoe Pivot Top

1шт.

6

84226810

BUSHING,80.19mm ID x 100mm OD x 38mm L

Backhoe Pivot Bottom

1шт.

7

220413A1

SPACER,93mm ID x 135mm OD x 5mm Thk

93 x 135 x 5 mm; Welded-On

1шт.

8

84326305

BUSHING,55.25mm ID x 67.7mm OD x 29mm L

Stabilizer

4шт.
