Запчасти Case 580SN WT (35.740.01[02]) - CYLINDER - BACKHOE EXTENDABLE DIPPER (580N,580SN, 580SN WT) (35) - HYDRAULIC SYSTEMS

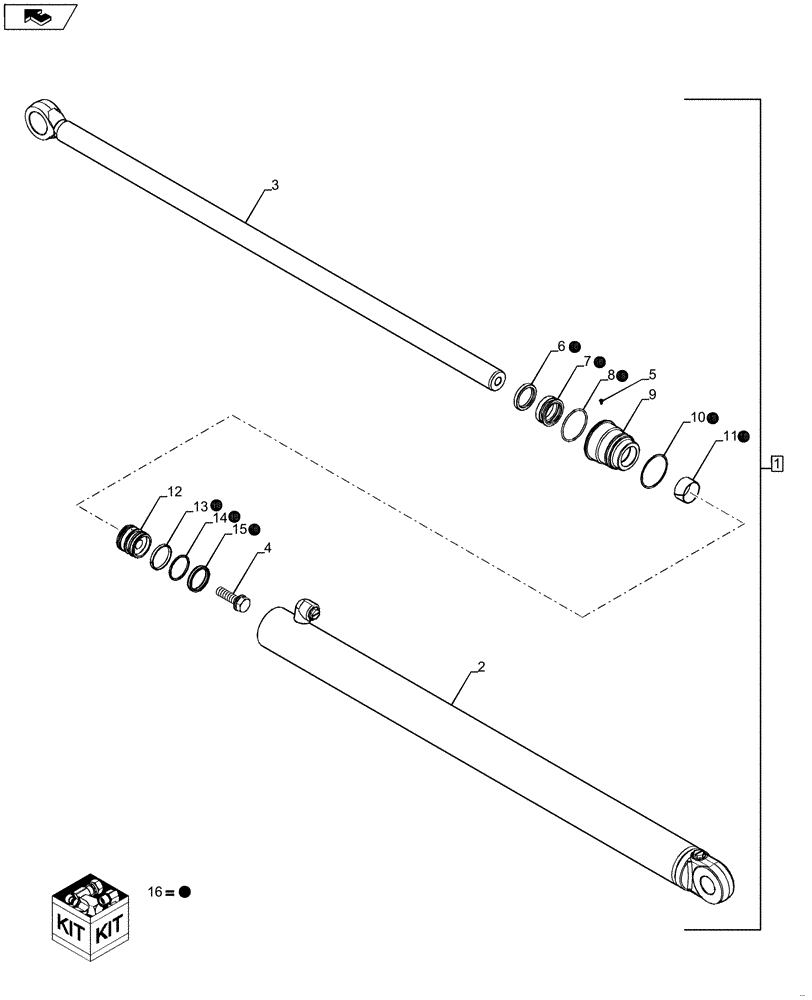

Схема запчастей Case 580SN WT - (35.740.01[02]) - CYLINDER - BACKHOE EXTENDABLE DIPPER (580N,580SN, 580SN WT) (35) - HYDRAULIC SYSTEMS
8
16
16
6
9
16
home
12
16
10
7
5
4
2
16
15
16
16
11
14
13
1
16
16
3

Артикул

Название

Примечание

Количество

1

84159675

CYLINDER,Double Acting, 44.4mm Rod, 1068mm Stroke

Assy, Incl 2-15

1шт.

2

1340970C1

TUBE,76.1mm Bore Dia

1шт.

3

84159680

ROD,44.4mm OD x 1338.2mm L

1шт.

4

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

7

1542875C1

SEAL KIT,44.4mm Rod

1шт.

8

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

9

297281A1

GLAND

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

11

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

12

G107277

PISTON

1шт.

13

G100443

SEAL,67.9mm ID x 77.1mm OD x 6.8mm Thk

1шт.

14

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

15

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

16

86982377

SEAL KIT

Assy, Incl 6-8, 10, 11, 13-15

1шт.

Выбрано товаров: 16
