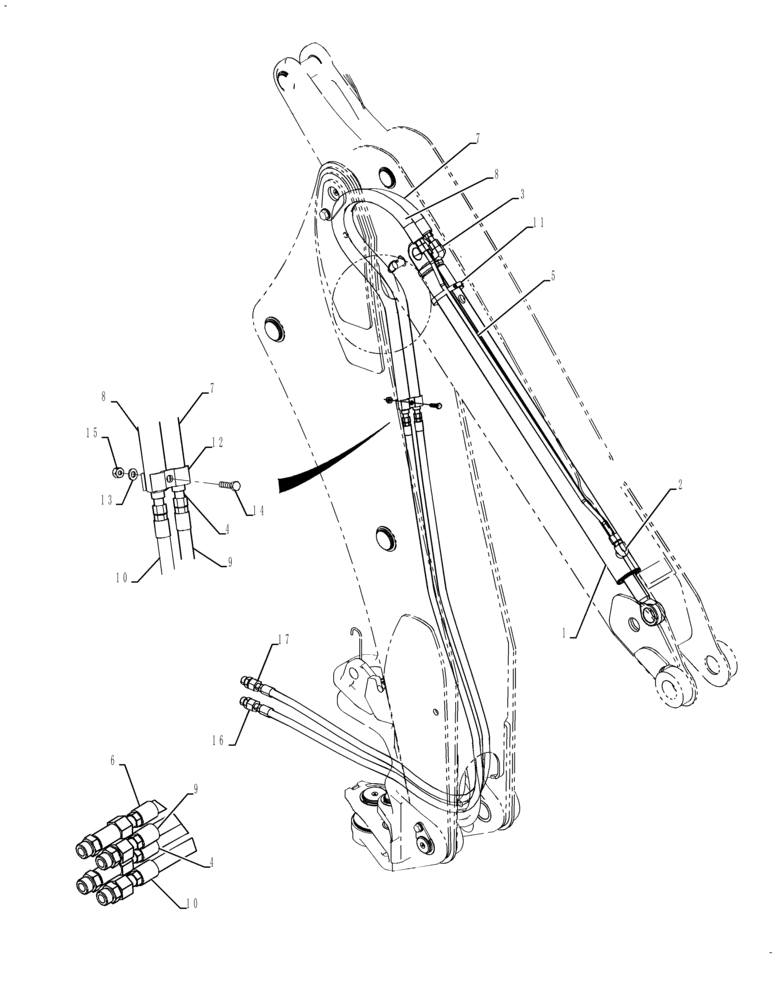

Запчасти Case 580SN WT (35.740.01[01]) - HYDRAULICS - BACKHOE EXTENDABLE DIPPER (580SN, 580SN WT) (35) - HYDRAULIC SYSTEMS

1

84159675

CYLINDER,Double Acting, 44.4mm Rod, 1068mm Stroke

1шт.

2

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

1шт.

3

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

1шт.

4

84257611

HYDRAULIC HOSE,15.88mm ID x 2755mm L, SAE 100R16

1шт.

O-ring 9991976

1шт.

5

84295701

HYD TUBE

1шт.

6

84343074

HOSE,12.5mm ID x 945mm L

EHOE Cylinder Rod

1шт.

6

47829695

HYDRAULIC HOSE,12.5mm ID x 845mm L

White, EHOE Cylinder Rod, Start Year: 20-MAR-15

1шт.

7

84343076

HOSE,12.5mm ID x 958mm L

EHOE Cylinder Head

1шт.

7

47829696

HYDRAULIC HOSE,12.5mm ID x 840mm L

Black, EHOE Cylinder Head, Start Year: 20-MAR-15

1шт.

8

84283458

HOSE ASSY.,12.5mm ID x 957mm L

EHOE Cylinder Rod

1шт.

9

84257618

HYDRAULIC HOSE,16mm ID x 2750mm L

Valve to EHOE Cylinder Head, Uses oring 9991976 (female end) and oring 9992069 (male end)

1шт.

9

47829693

HYDRAULIC HOSE,16mm ID x 2940mm L

Valve to EHOE Cylinder Head, Start Year: 20-MAR-15

1шт.

10

84263639

HOSE ASSY.,16mm ID x 2766mm L

Valve to EHOE Cylinder Rod

1шт.

10

47829694

HYDRAULIC HOSE,16mm ID x 2950mm L

Valve to EHOE Cylinder Rod, Start Year: 20-MAR-15

1шт.

11

214-3172

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

1шт.

12

221525A1

CLAMP,26mm ID

4шт.

13

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

7шт.

14

120114

SCREW

1шт.

15

86500689

NUT,M10 x 1.5, Cl 10

3шт.

16

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.

17

87393627

HYD CONNECTOR

2шт.

18

86982377

SEAL KIT

Complete (Not Shown)

1шт.
