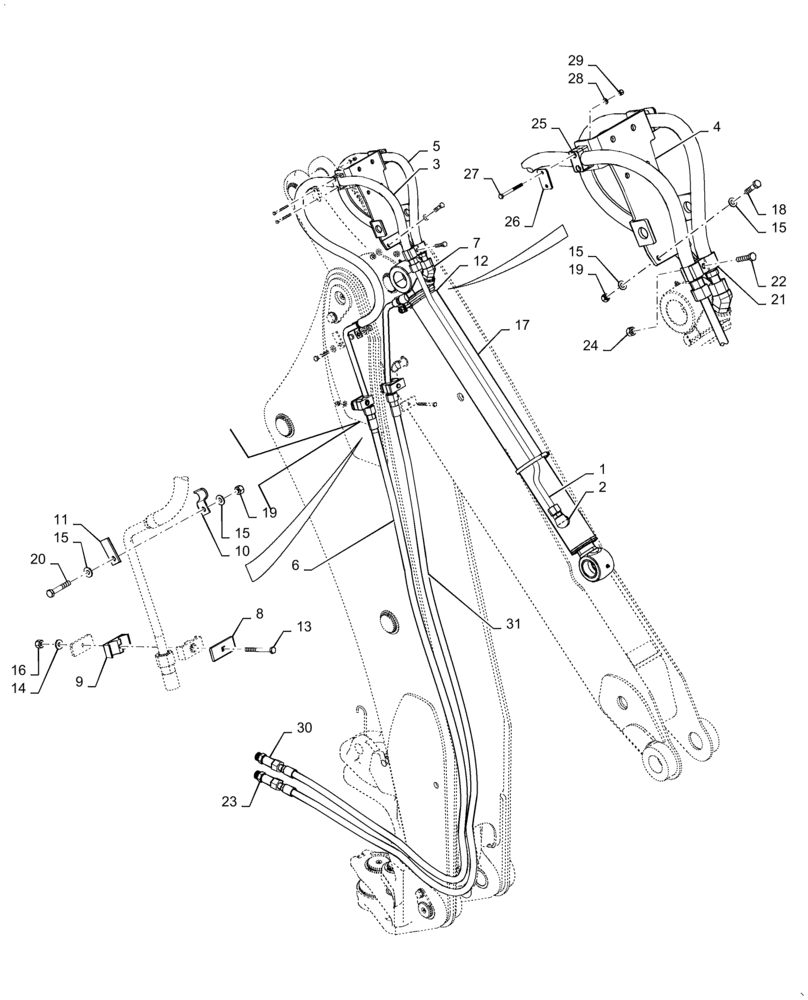

Запчасти Case 580SN WT (35.738.02[02]) - HYDRAULICS - BACKHOE (580SN, 580SN WT) (W/ EXTENDABLE DIPPER) (35) - HYDRAULIC SYSTEMS

1

84305540

TUBE

BUCKET CYLINDER ROD

1шт.

2

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

1шт.

3

84283822

HYD TUBE

BUCKET CYL ROD

1шт.

4

84181871

CLAMP BRACKET

1шт.

5

84283823

HYD TUBE

BUCKET CYLINDER HEAD

1шт.

6

84281616

HOSE ASSY.,15.88mm ID x 2800mm L, SAE 100R16

VALVE TO BUCKET - CYL ROD

1шт.

7

201-317

ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS

1шт.

8

84283495

SECURING STRAP

4шт.

9

87000146

CLAMP

2шт.

10

84259029

CLAMP,3/4'

2шт.

11

84259030

SPACER

2шт.

12

214-3180

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm

2шт.

13

366046

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 80mm, Cl 8.8

2шт.

14

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

6шт.

15

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

7шт.

16

824-1408

NUT,M8 x 1.25, Cl 10

2шт.

17

84210935

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 897.9mm Stroke

1шт.

17

84210935R

REMAN-HYD CYLINDER

580SN 58SN01, 580SN WT BOTH TIER 3

1шт.

17

84210935C

CORE-HYD CYLINDER

RETURN NUMBER

1шт.

18

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

19

100016

NUT,M10 x 1.5, Cl 8

4шт.

20

86508619

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

21

221525A1

CLAMP,26mm ID

2шт.

22

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

23

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

2шт.

24

86500689

NUT,M10 x 1.5, Cl 10

3шт.

25

87022323

CLAMP,25.4mm D Clamping Pipe

2шт.

26

1541537C1

PLATE

2шт.

27

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

4шт.

28

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

29

9706755

NUT,M6, Cl 8

4шт.

30

87393627

HYD CONNECTOR

2шт.

31

84257611

HYDRAULIC HOSE,15.88mm ID x 2755mm L, SAE 100R16

VALVE TO BUCKET - CYL HEAD

1шт.
