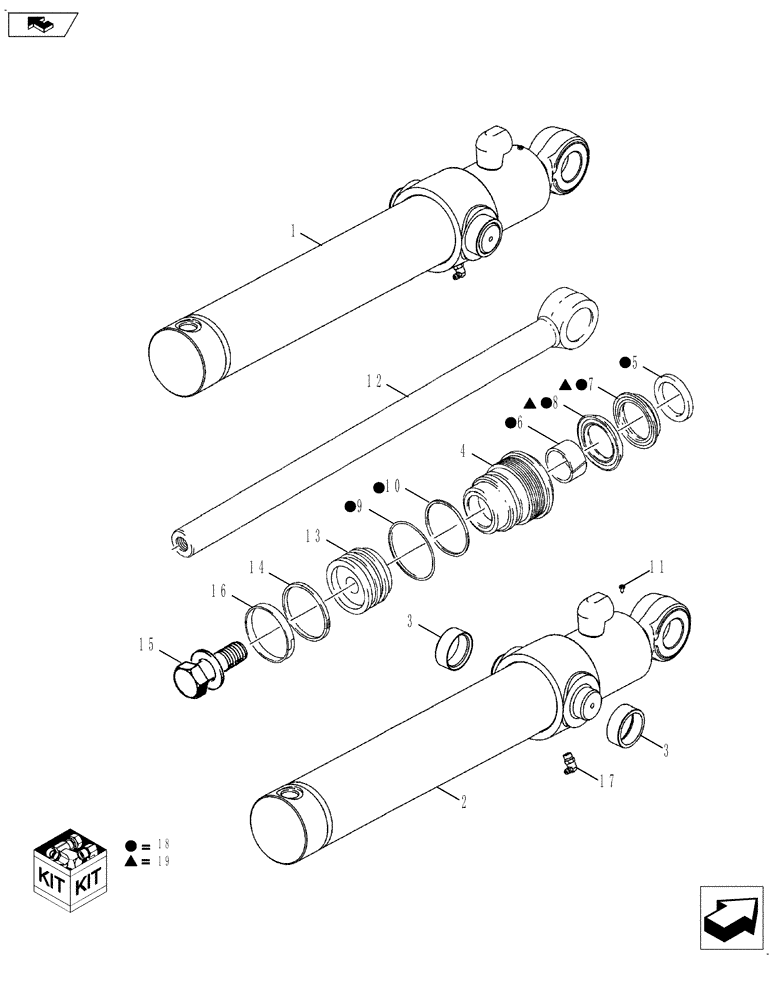

Запчасти Case 580SN WT (35.738.01[02]) - CYLINDER - LOADER BUCKET (580SN, 580SN WT) (35) - HYDRAULIC SYSTEMS

1

84210943

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 516.5mm Stroke

76 ID x 522 mm strk; Loader Bucket; Inc 2- 17

1шт.

1

84210943R

REMAN-HYD CYLINDER

580SM, 580SM+, Both SERIES 3 (2/08-), 580SN, 580SN WT, All LOADER BACKHOE - TIER 3, 76 ID x 522 mm strk, Loader Bucket

1шт.

1

84210943C

CORE-HYD CYLINDER

Return Number

1шт.

2

84237939

TUBE,76.2mm Bore Dia

Inc 3

1шт.

3

G108512

BUSHING,41.2mm ID x 50mm OD x 18.7mm L

2шт.

4

84237948

GLAND

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

Wiper

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL Rod; Order 1542874C1

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL Buffer; Order 1542874C1

1шт.

9

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

Backup

1шт.

11

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

12

84237943

ROD,38.1mm OD

1шт.

13

84237950

PISTON,75.57mm Bore, 40.25mm Rod, 75.95mm W

1шт.

14

364376A1

RING,Locking, 68.88mm ID x 76.1mm OD x 4.74mm Thk

Cast Iron

1шт.

15

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

3/4 x 2.5 in, Includes Washer

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

18

84257772

SEAL KIT,38.1mm Rod x 76.2mm Bore

Complete, Inc 5 - 10, 14, 16, 20

1шт.

19

1542874C1

SEAL KIT,38.1mm Rod

Rod and Buffer; Inc 7, 8

1шт.

20

87715781

SEAL,63.78mm ID x 76.2mm OD

Kit, 4 Piece Piston; Does Not Inc. 14,16 (Not Shown)

1шт.
