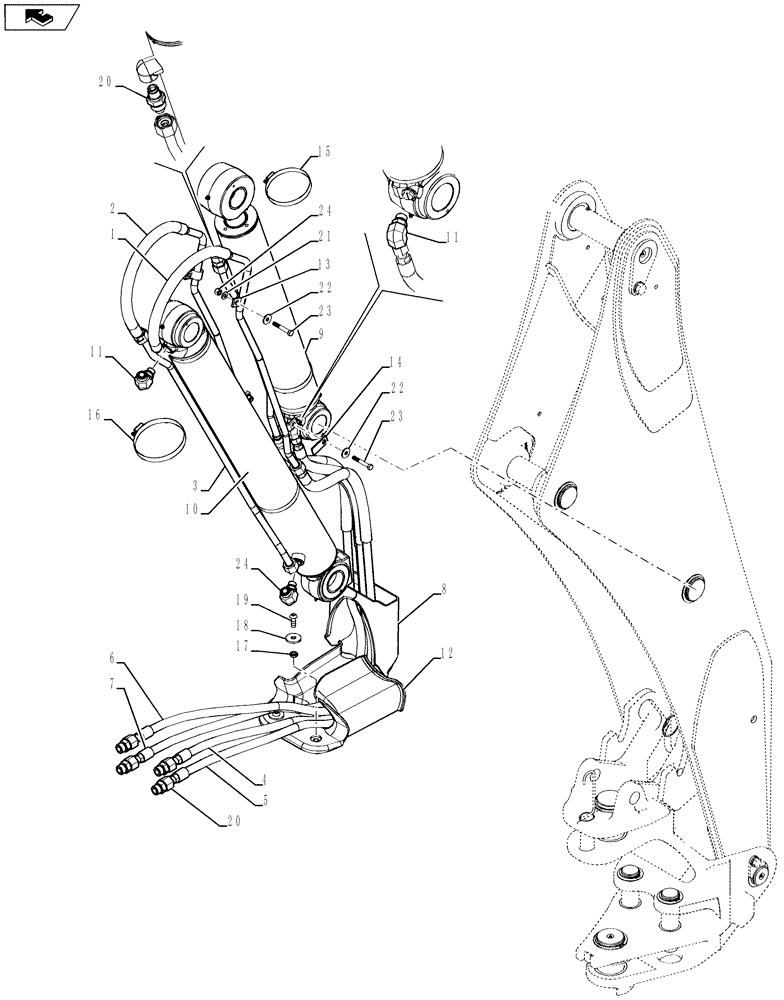

Запчасти Case 580SN WT (35.737.01[02]) - HYDRAULICS - BOOM INSTALL (580SN, 580SN WT) (35) - HYDRAULIC SYSTEMS

1

84257628

HYD TUBE

Boom Cylinder Head End

1шт.

2

84280749

HYD TUBE

Boom Cylinder Rod End

1шт.

3

84257622

HYD TUBE

Boom Cylinder Rod End

1шт.

4

84287836

HYD TUBE

Dipper Cylinder Rod End; Blue

1шт.

5

84257621

HYDRAULIC HOSE,15.88mm ID x 2073mm L, SAE 100R16

Dipper Cylinder Head End; Green

1шт.

6

84257632

HYDRAULIC HOSE,15.88mm ID x 2043mm L, SAE 100R16

Boom Cylinder Head End; Orange

1шт.

7

84263635

HYDRAULIC HOSE,15.88mm ID x 2064mm L, SAE 100R16

Boom Cylinder Rod End; Yellow

1шт.

8

84303528

GUARD

1шт.

9

84288848

HYDRAULIC CYLINDER,63.5mm Rod, 628.5mm Stroke

Dipper

1шт.

9

84288848R

REMAN-HYD CYLINDER

Reman For New P/N 84288848

1шт.

9

84288848C

CORE-HYD CYLINDER

Return Number

1шт.

10

84210929

CYLINDER

Boom

1шт.

11

201-341

ELBOW,90 Degree, 1"-14 x 1 1/16"-12, Adj, ORFS

2шт.

12

84303525

GUARD

1шт.

13

84367726

CLAMP,3/4" Clamping tube

4шт.

14

84259030

SPACER

2шт.

15

214-1496

HOSE CLAMP,#96, 5.56" - 6.5", Type F Worm

2шт.

16

214-31104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm

2шт.

17

84286039

SPACER,13.87mm ID x 21.34mm OD x 5.4mm Thk

2шт.

18

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

2шт.

19

84299393

HEX SOC SCREW,Hex Socket Button Head, M12 x 1.75 x 35mm, Cl. 10.9

2шт.

20

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

5шт.

21

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

22

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

4шт.

23

120071

BOLT,Hex, M10 x 65, 8.8

4шт.

24

87656136

HYD CONNECTOR

1шт.
