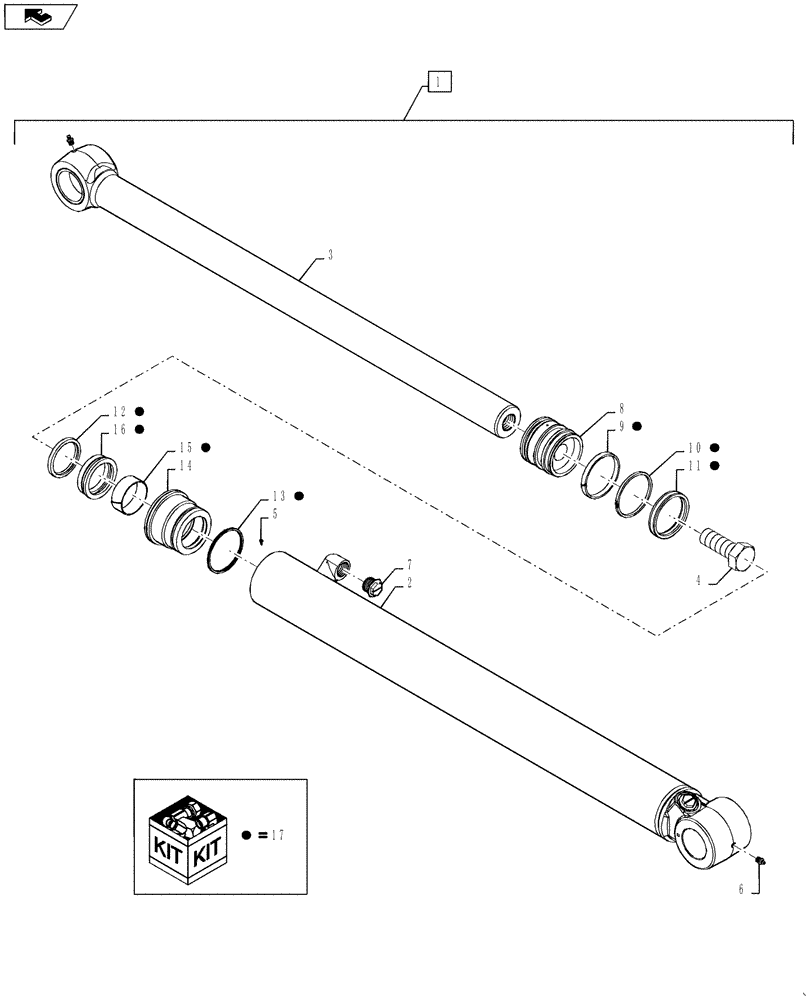

Запчасти Case 580SN WT (35.730.03[02]) - CYLINDER - BACKHOE BOOM (580SN, 580SN WT) (35) - HYDRAULIC SYSTEMS

1

84210929

CYLINDER

Incl 2 - 19

1шт.

2

84204337

BARREL

1шт.

3

84321895

ROD,63.5mm OD x 1241.2mm L

Incl 19

1шт.

4

86982443

SPECIAL BOLT,1" 3/8 x 3.50 L

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

7

353-782

PLUG,Slotted, 1 1/16"-12

1шт.

8

84204689

PISTON ROD/GLAND

1шт.

9

G102090

RING,127mm OD, Ext

1шт.

10

NSS

NOT SOLD SEPARAT

RING; Cast Iron; Incl in 17

1шт.

11

87715789

SEAL,127mm OD

1шт.

12

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

13

87615485

SEAL,118.72mm ID x 125.88mm OD x 4.85mm Thk

1шт.

14

84205602

GLAND

1шт.

15

G109908

BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L

1шт.

16

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Rod and Buffer

1шт.

17

84259219

SEAL KIT,63.5mm Rod x 127.0mm Bore

Seal; Incl 9, 10, 11, 12, 13, 15, 16

1шт.

18

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

(Not Shown)

1шт.

19

123407A1

BUSHING,60.19mm ID x 70mm OD x 28mm L

Incl in 3

2шт.
