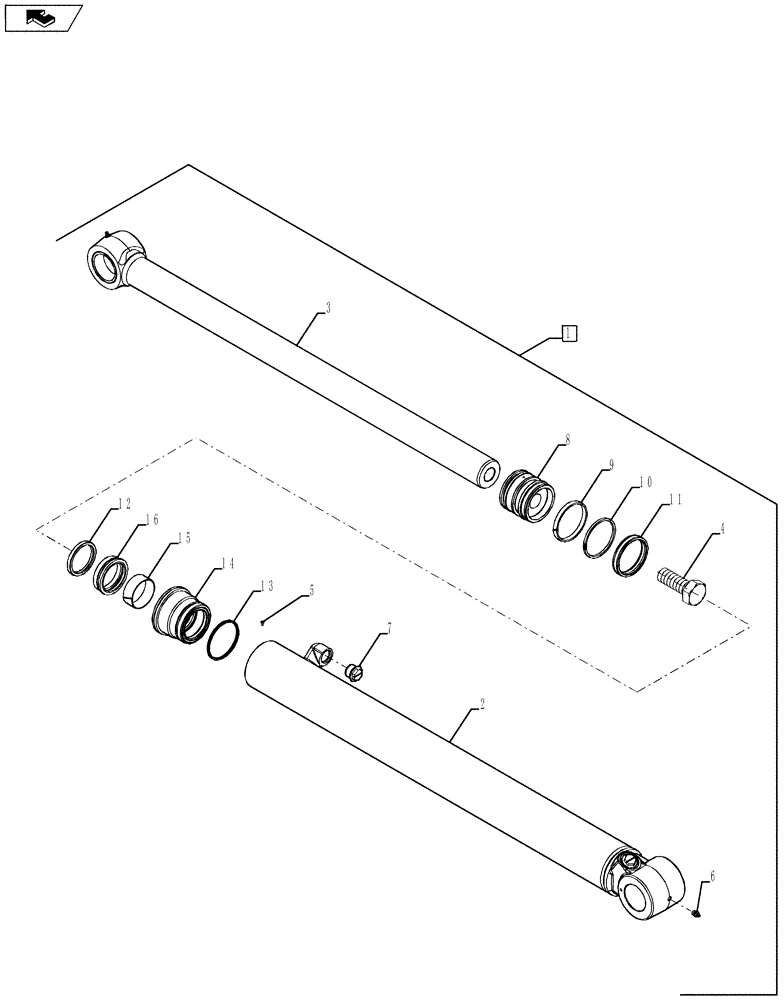

Запчасти Case 580SN WT (35.730.01[02]) - CYLINDER - BACKHOE DIPPER(580SN, 580SN WT) (35) - HYDRAULIC SYSTEMS

1

84288848

HYDRAULIC CYLINDER,63.5mm Rod, 628.5mm Stroke

Dipper

1шт.

1

84288848R

REMAN-HYD CYLINDER

Reman For New P/N 84288848

1шт.

1

84288848C

CORE-HYD CYLINDER

Return Number

1шт.

2

84288845

BARREL

1шт.

3

84204342

ROD,63.5mm OD x 842.67mm L

1шт.

4

86982443

SPECIAL BOLT,1" 3/8 x 3.50 L

1шт.

5

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

7

353-782

PLUG,Slotted, 1 1/16"-12

2шт.

8

84288837

PISTON ROD/GLAND,120.01mm Bore, 63.58mm Rod, 75.93mm W

1шт.

9

446195A1

SEALING RING,Split, 114.27mm ID x 120.62mm OD x 19.05mm Thk

1шт.

10

87402621

O-RING,Locking, 110.89mm ID x 120.55mm OD x 6.33mm Thk

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL; Order 84259222 Seal Kit

1шт.

12

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

13

84153643

SEAL,112.52mm ID x 119.68mm OD x 4.85mm Thk

1шт.

14

84150048

GLAND,120.7MM BORE, 63.5MM ROD

1шт.

15

G109908

BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L

1шт.

16

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Rod and Buffer

1шт.

17

1346101C1

RING,60.19mm ID x 70mm OD x 39mm L

Eye Bushing (Not Shown)

2шт.

18

84259222

SEAL KIT,63.5mm Rod x 120.70mm Bore

Complete (Not Shown)

1шт.
