Запчасти Case 580SN WT (35.726.37[01]) - VALVE ASSY - HAMMER AUXILIARY (WITH MECHANICAL CONTROLS) (35) - HYDRAULIC SYSTEMS

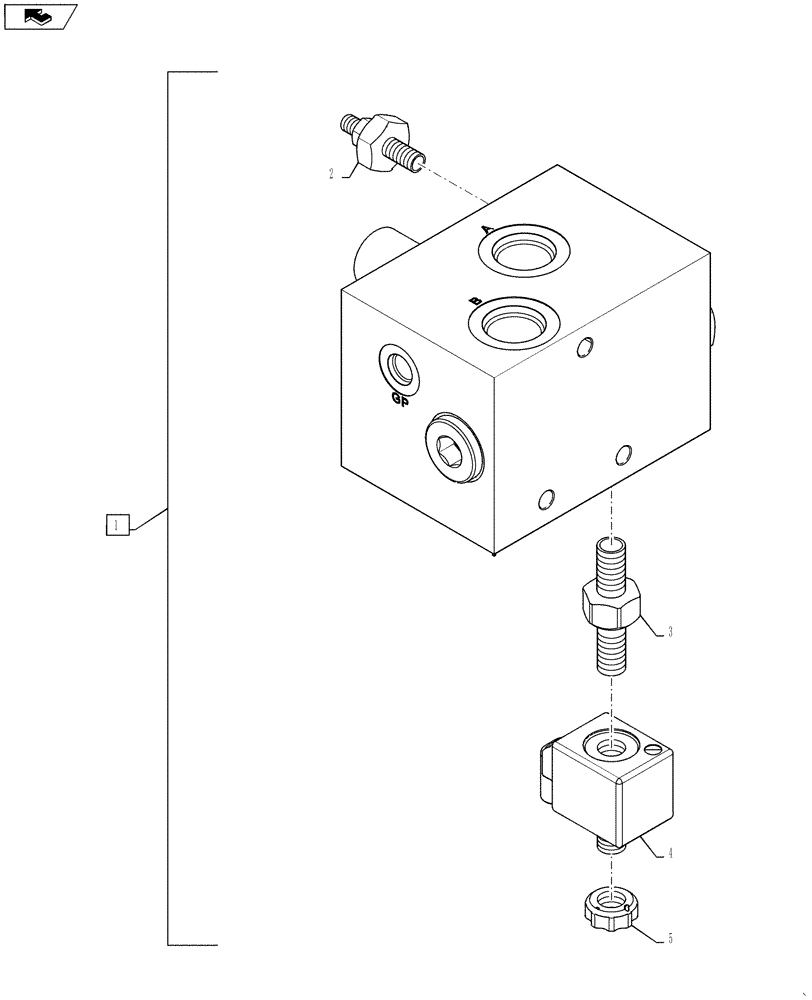

Схема запчастей Case 580SN WT - (35.726.37[01]) - VALVE ASSY - HAMMER AUXILIARY (WITH MECHANICAL CONTROLS) (35) - HYDRAULIC SYSTEMS
2
5
1
4
3
home

Артикул

Название

Примечание

Количество

1

84247109

VALVE

Hammer; Open Center

1шт.

2

9970178

VALVE PRESSURE RELIE

1шт.

3

9970180

SOLENOID VALVE

1шт.

4

84478803

COIL

1шт.

5

9970384

RING NUT

1шт.

Выбрано товаров: 5
