Запчасти Case 580SN WT (35.726.18[02]) - VALVE - BACKHOE CONTROL, 8 SPOOL (W/O EXT DIPPER, W/ AUX HYDS, W/ PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS

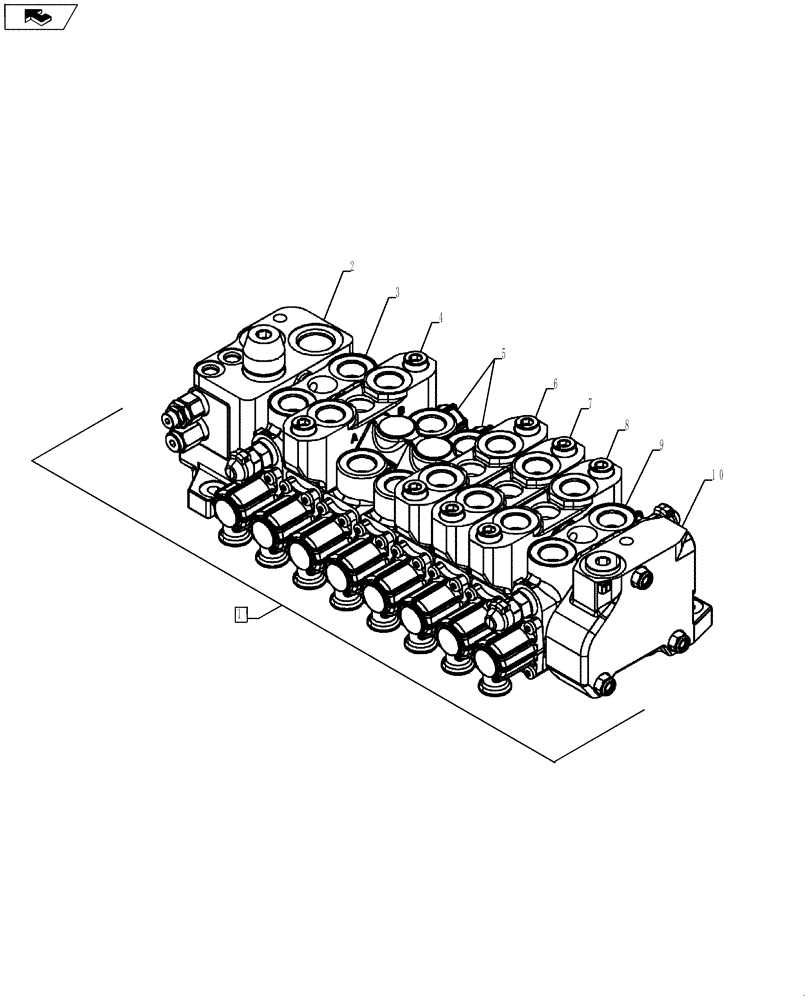

Схема запчастей Case 580SN WT - (35.726.18[02]) - VALVE - BACKHOE CONTROL, 8 SPOOL (W/O EXT DIPPER, W/ AUX HYDS, W/ PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS
9
5
6
10
4
8
3
7
home
2
1

Артикул

Название

Примечание

Количество

1

84214062

PILOT VALVE

580N

1шт.

1

84269980

PILOT VALVE

580SN, 580SN WT, 590SN

1шт.

2

84355708

HYD VALVE SECTION

Inlet Gear Pump, 580N

1шт.

2

84278712

HYD VALVE SECTION

Inlet Gear Pump, 580SN, 580SN WT, 590SN

1шт.

3

87751023

HYD VALVE SECTION

Swing

1шт.

4

84278714

HYD VALVE SECTION

Boom

1шт.

4

84278714R

REMAN-HYD VALVE

Reman Valve - Boom

1шт.

4

84278714C

CORE-VALVE HYD

Core Return Number

1шт.

5

84157939

HYD VALVE SECTION

Stabilizer

2шт.

6

84278710

HYD VALVE SECTION

Dipper

1шт.

7

84278702

HYD VALVE SECTION

Bucket

1шт.

8

84278692

HYD VALVE SECTION

EHoe

1шт.

9

84278691

HYD VALVE SECTION

Bi-Dir Pilot

1шт.

10

85811915

HYD VALVE SECTION

Outlet

1шт.

11

87447477

SET OF PARTS

Tie Bolt

1шт.

Выбрано товаров: 15
