Запчасти Case 580SN WT (35.726.17[02]) - VAR 423076, 742369, 747661, 747662 - VALVE - BACKHOE CONTROL, 7 SPOOL (W/ EXT DIPPER, W/O AUX, W/O PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS

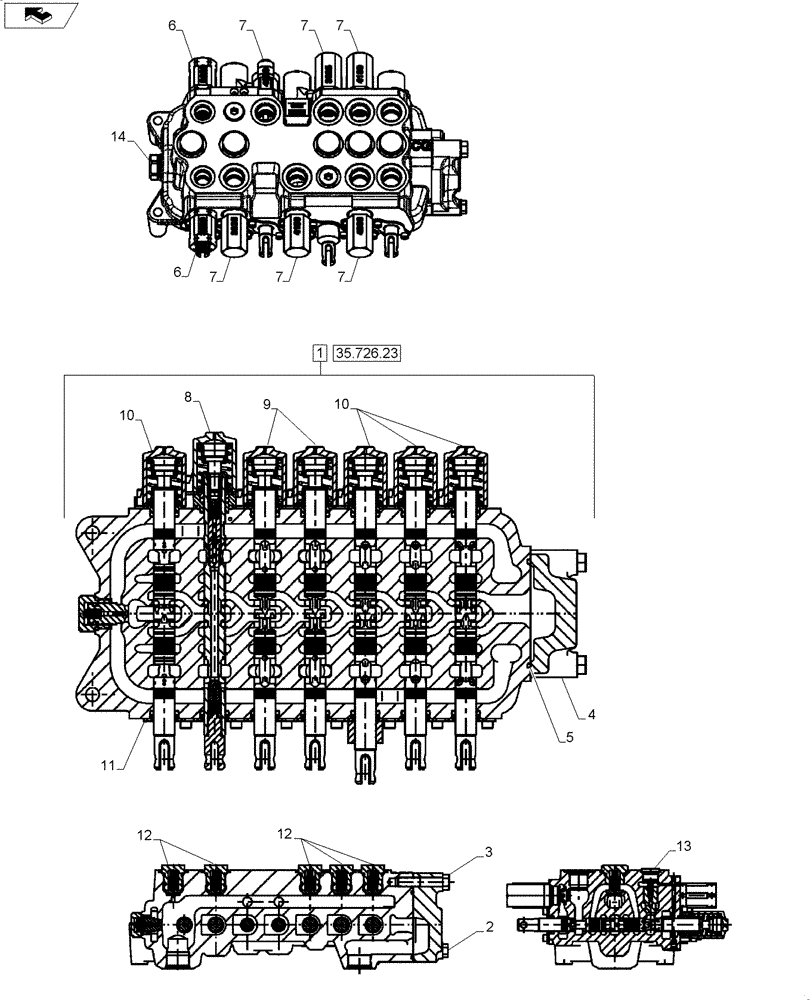

Схема запчастей Case 580SN WT - (35.726.17[02]) - VAR 423076, 742369, 747661, 747662 - VALVE - BACKHOE CONTROL, 7 SPOOL (W/ EXT DIPPER, W/O AUX, W/O PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS
7
1
6
7
2
3
1
7
10
8
4
7
13
7
9
12
10
home
5
14
12
7
6
11
35.726.23

Артикул

Название

Примечание

Количество

1

84273238

VALVE

Foot Swing, Incl 2 - 16

1шт.

1

84273243

VALVE

Hand Swing, Incl 2 - 16

1шт.

SEAL KIT; See Fig. 35.726.26

1шт.

2

87428491

SCREW,Hex

2шт.

3

87428492

SCREW,Hex

1шт.

4

87433030

OUTLET

1шт.

5

87428495

O-RING,3.50" ID x 3.76" OD x .139" thk

1шт.

6

84296800

VALVE PRESSURE RELIE

2шт.

7

84296804

VALVE PRESSURE RELIE,230 Bar, Adjustable

5шт.

7

47520550

VALVE PRESSURE RELIE

Boom, B Port, Only

1шт.

8

84296862

KIT

1шт.

9

84296826

SERVICE KIT

2шт.

10

84296859

KIT

4шт.

11

84315193

SEAL

7шт.

12

87426238

VALVE, CHECK

5шт.

13

87428486

VALVE, CHECK

1шт.

14

81868381

CHECK VALVE,1-1/16" - 12

1шт.

15

84296861

SERVICE KIT

(Not Shown)

1шт.

16

87429151

VALVE SPRING

Foot Swing

1шт.

16

87429150

VALVE SPRING

Hand Swing

1шт.

Выбрано товаров: 20
