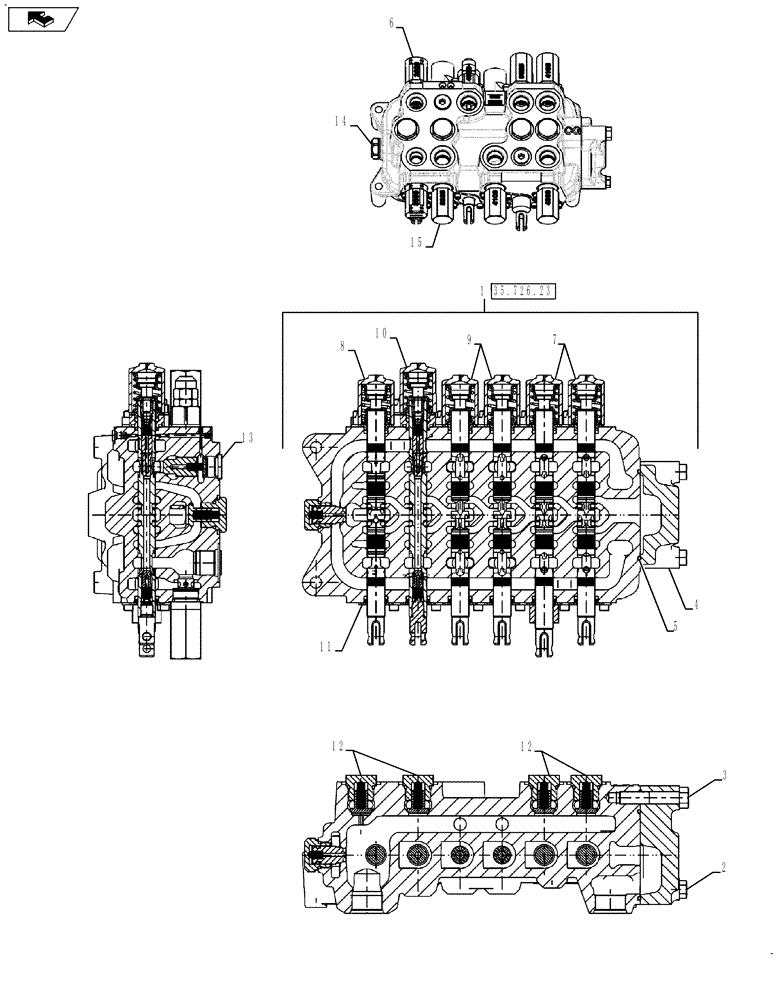

Запчасти Case 580SN WT (35.726.16[01]) - VAR 423075, 747661, 747662 - VALVE - BACKHOE CONTROL, 6 SPOOL (W/O EXT DIPPER, W/O AUX HYDS, W/O PILOT CONTROLS) (35) - HYDRAULIC SYSTEMS

1

84273236

VALVE

Foot Swing; Incl 2 - 16

1шт.

1

84273237

VALVE

Hand Swing; Incl 2 - 16

1шт.

SEAL KIT; See Fig. 35.726.26

1шт.

2

87428491

SCREW,Hex

2шт.

3

87428492

SCREW,Hex

1шт.

4

87433030

OUTLET

1шт.

5

87428495

O-RING,3.50" ID x 3.76" OD x .139" thk

1шт.

6

84296800

VALVE PRESSURE RELIE

2шт.

7

84296859

KIT

2шт.

8

84296861

SERVICE KIT

1шт.

9

84296826

SERVICE KIT

2шт.

10

84296862

KIT

1шт.

11

84315193

SEAL

6шт.

12

87426238

VALVE, CHECK

4шт.

13

87428486

VALVE, CHECK

1шт.

14

81868381

CHECK VALVE,1-1/16" - 12

1шт.

15

84296804

VALVE PRESSURE RELIE,230 Bar, Adjustable

5шт.

15

47520550

VALVE PRESSURE RELIE

Boom, B Port, Only

1шт.

16

87429151

VALVE SPRING

Foot Swing

1шт.

16

87429150

VALVE SPRING

Hand Swing

1шт.
