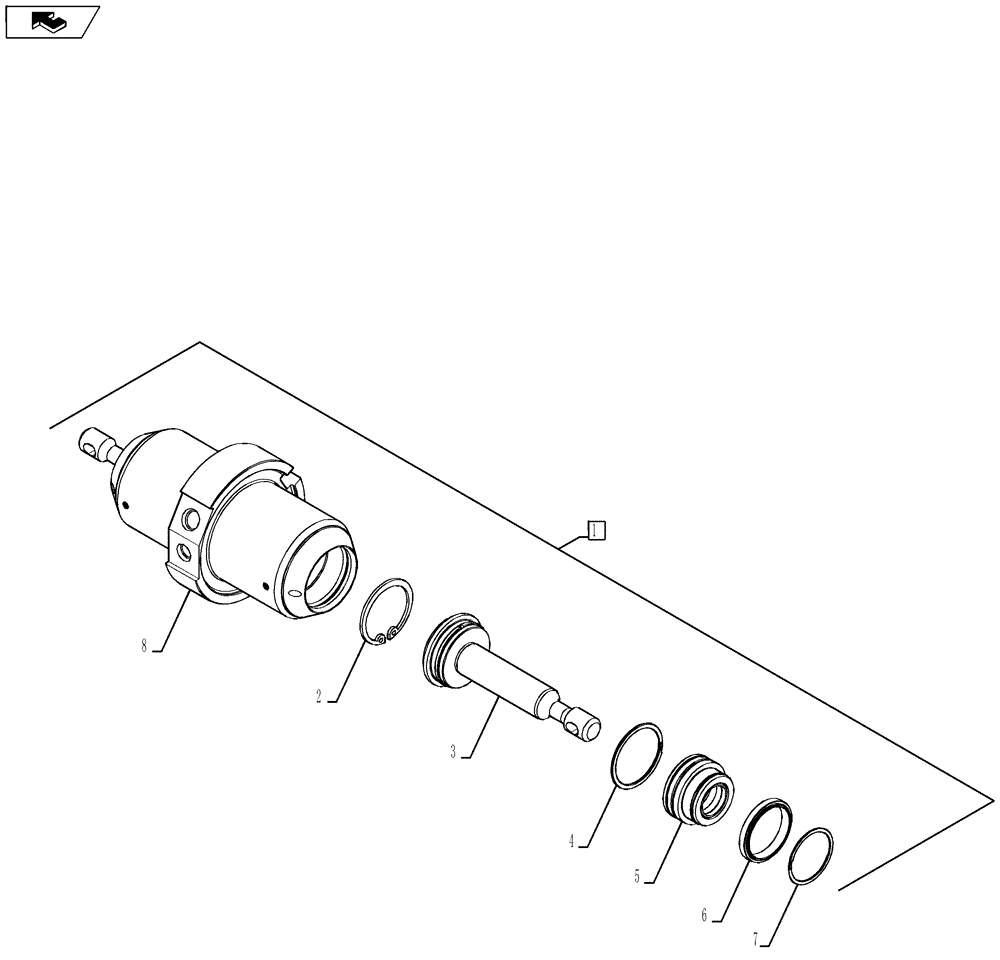

Запчасти Case 580SN WT (35.726.15) - CYLINDER - COUPLER, BACKHOE BUCKET (35) - HYDRAULIC SYSTEMS

1

84270939

HYDRAULIC CYLINDER,Double Acting, 19.1mm Rod, 80.6mm Stroke

1шт.

1

84270939R

REMAN-HYD CYLINDER

Reman For New PN 84270939

1шт.

1

84270939C

CORE-HYD CYLINDER

Return Number

1шт.

2

800-6138

SNAP RING,M38, Int

1шт.

3

399909A3

ROD,19.1mm Dia, 38.1mm Bore

2шт.

4

102-23150

SNAP RING,#150, 1.591", Int, Spiral

2шт.

5

84270943

GLAND

2шт.

6

84270950

SPACER,31.8mm ID x 38mm OD x 6.5mm Thk

2шт.

7

102-12125

SNAP RING,#125, 1.188", Ext Spiral

2шт.

8

87615850

TUBE,38.1 mm ID

1шт.
