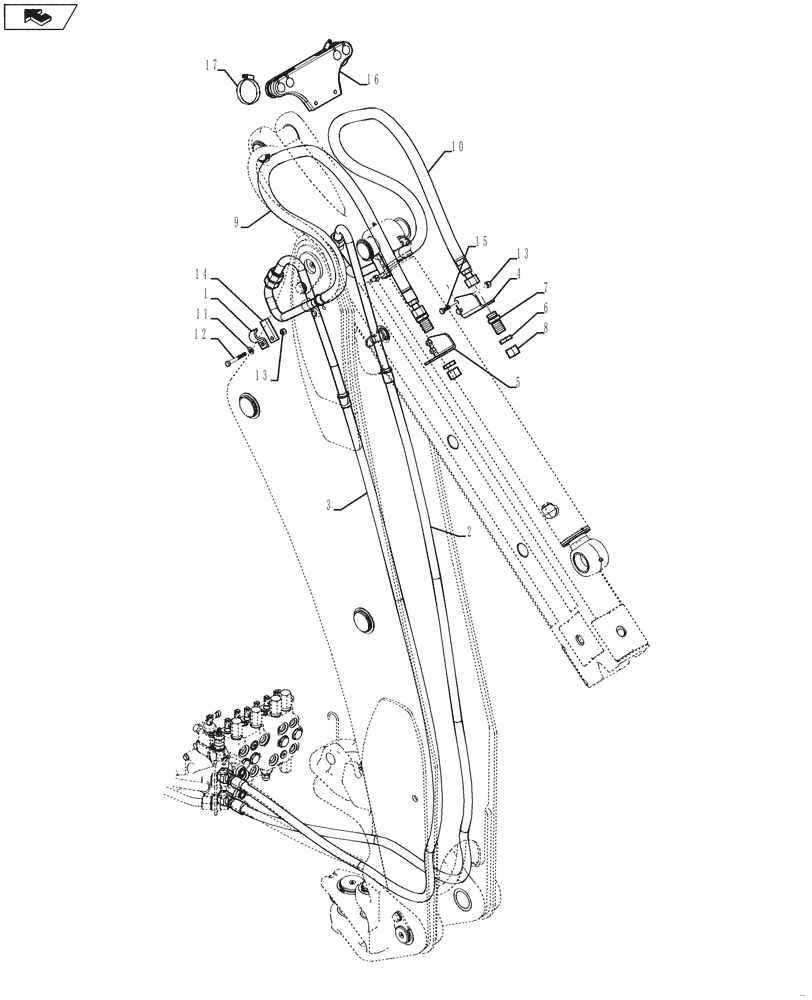

Запчасти Case 580SN WT (35.726.10[02]) - HYDRAULICS - BACKHOE AUXILIARY, EXTENDABLE DIPPER (580N, 580SN, 580SN WT) (35) - HYDRAULIC SYSTEMS

1

242459A1

SHIN

2шт.

2

84323529

TUBE

Purple, Port B

1шт.

3

84280508

HYD TUBE,19mm ID x 2756mm L

Gray, Port A

1шт.

4

84305054

BRACKET

1шт.

5

84305006

BRACKET

1шт.

6

218-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

7

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

2шт.

8

201-907

CAP,1-3/16" - 12 ORFS

2шт.

9

84312502

HYD TUBE,19mm ID x 1656mm L

Port B

1шт.

10

84312504

HYD TUBE,19mm ID x 1656mm L

Port A

1шт.

11

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

12

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

13

412141

NUT,M10 x 1.5, Cl 8

6шт.

14

84299978

PLATE

2шт.

15

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

16

84359766

SUPPORT

1шт.

17

214-3156

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm

2шт.
